Product name:ST5-5DD

Product overview:

TAG:  MAGER ST5 (DD) SERIES / SOLID STATE RELAY / DC TO DC (DC INPUT DC OUPUT) / SPECIAL / FIVE CHANNEL
Control Voltage:  24VDC
Control Current:  Ultra low input current, ≤10mA
Load Voltage:  24VDC
Load Current:  5A, 10A
Dimensions & Mounting:  65mm*51mm*30mm; Panel mount solid state relay with metal base, five I/O channels and screw terminals

Content us Return list Download PDF

Product introduction

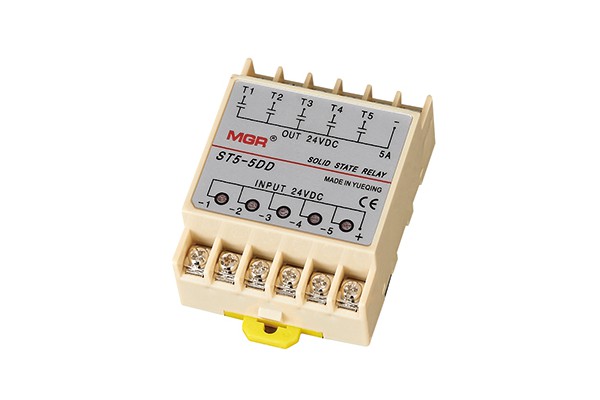

ST5-5DD

FIVE CHANNEL DC SOLID STATE RELAY (SPECIAL)

ST5 5DD, ST5(DD) series DC to DC five pin solid state relay, DC input, DC output, 24VDC, 24VDC, Panel mount solid state relay with metal base, five I/O channels and lead terminals

Type meaning

ST5:[Five channels] - 5:[5A] - DD:[DC-DC (DC input-DC output)]


Features
● Rated current: 5Amps
● Rated voltage: 24VDC
● Control voltage: 24VDC
● Five I/O channels
● Low-impedance MOSFET as the output component minimize the total power consumption
● Low output off-state leakage current
● Low output on-state voltage drop
● Five separate LED output states
● Each channel is independent of other channels, and all channels are freely controllable

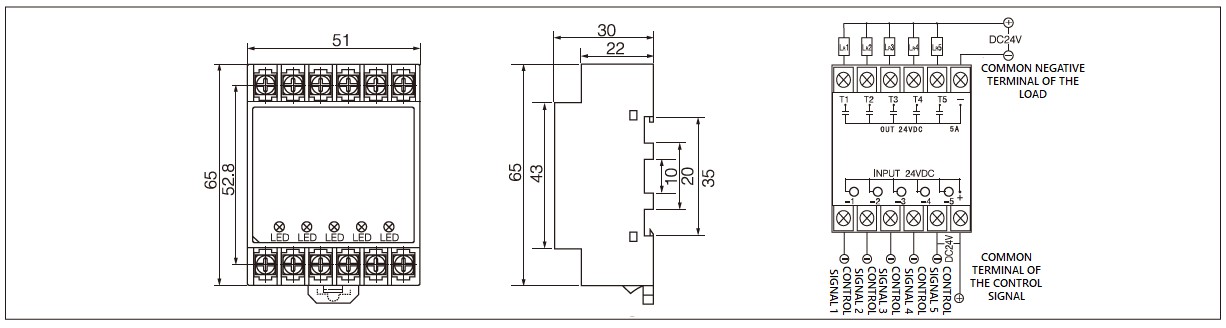

5 pole DC solid state relay dimensions, 5 pin DC relay circuit diagram and solid state five terminal relay wiring diagram of the ST5(DD) series five wire DC solid state relay


If you would like more information on this model or other unlisted models, please go to the Resource Page and download the Catalogue. Or contact with us via the form at the bottom of the page.
Click here to know more about Solid State Relay.
