Product name:PN5-10DA

Product overview:

TAG:  MAGER PN5 (DA) SERIES / SOLID STATE RELAY / DC TO AC (DC INPUT AC OUPUT) / SPECIAL / SINGLE PHASE / FIVE CHANNEL
Control Voltage:  3~32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current:  Ultra low input current, ≤10mA
Load Voltage:  Single phase 24~480VAC (such as 24VAC, 48VAC, 110VAC, 230VAC, 380VAC, 480VAC or customized load voltage)
Load Current:  5A, 10A
Dimensions & Mounting:  65mm*51mm*30mm; Panel mount solid state relay with metal base, five I/O channels and screw terminals

Content us Return list Download PDF

Product introduction



PN5-10DA

FIVE CHANNEL AC SOLID STATE RELAY (SPECIAL)

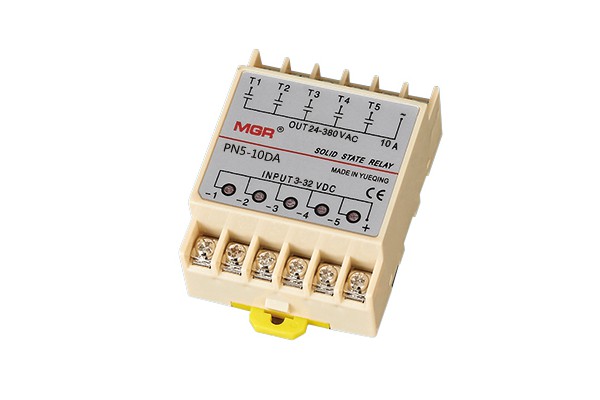

Product Image - PN5 10DA

Type meaning

PN5:[Five channels] - 10:[10A] - DA:[DC-AC (DC input-AC output)]


Features
● Rated current: 10Amps
● Rated voltage: 24-480VAC
● Control voltage: 3-32VDC
● Control current: ≤10mA
● Five I/O channels
● "Ultra low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Five separate LED output states
● Standard output RC snubber circuit
● Each channel is independent of other channels, and all channels are freely controllable

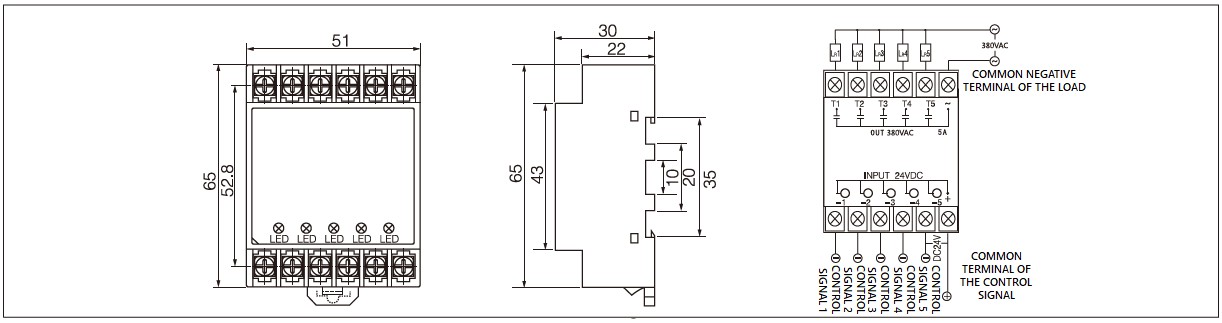

Dimension and circuit diagram - PN5 (DA) series


If you would like more information on this model or other unlisted models, please go to the Resource Page and download the Catalogue. Or contact with us via the form at the bottom of the page.
Click here to know more about Solid State Relay.
