Product name:MGR-AH3200Z-3

Product overview:

TAG:  MAGER MGR-AH3(3) SERIES / SOLID STATE RELAY / AC TO AC (AC INPUT AC OUPUT) / INDUSTRIAL / COMBINED / THREE PHASE / ZERO CROSSING / HIGH LOAD CURRENT / HEAT SINK
Control Voltage:  85~265VAC (such as 100VAC, 110VAC/120VAC, 200VAC, 220VAC/230VAC, 240VAC or customized control voltage)
Control Current:  Ultra low input current, ≤30mA (in parallel), ≤10mA (in series)
Load Voltage:  Three phase 30~480VAC (such as 24VAC, 48VAC, 110VAC, 230VAC, 380VAC, 480VAC or customized load voltage)
Load Current:  150A, 200A, 300A, 400A
Dimensions & Mounting:  Combined with three MGR AH3 series single phase AC to AC solid state relays, a heat sink, an air cooler radiator and a temperature control

Content us Return list Download PDF

Product introduction

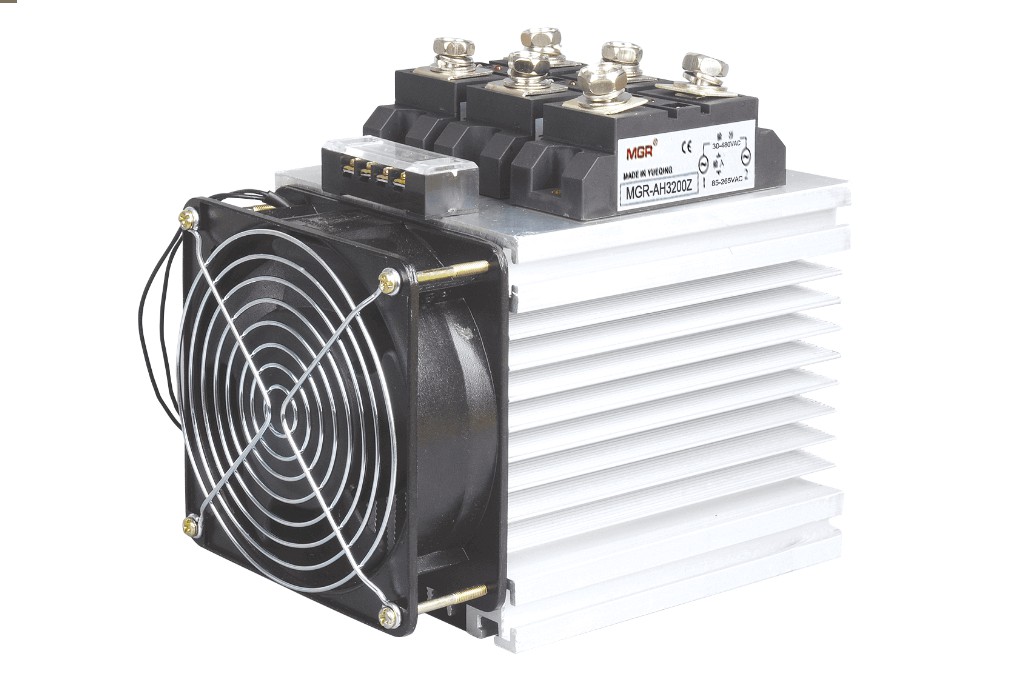

MGR-AH3200Z-3

INDUSTRIAL THREE PHASE AC COMBINED SOLID STATE RELAY (ORDINARY TYPE)

MGR AH3200Z3, MGRAH3(3) series AC to AC solid state relay, AC input, AC output, zero-crossing, 265VAC, 480VAC, combined with three MGR AH3 series single phase AC to AC solid state relays, a heat sink, an air cooler radiator and a temperature control

Type meaning

MGR - A: [Control voltage 85-265VAC] - H: [Long strip] - 3: [Load voltage 30-480VAC] -200: [200A] -Z: [Zero-crossing type] -3: [Three phase combined solid state relay]


Features
● Rated current: 200Amps
● Rated voltage: 30-480VAC
● Control voltage: 85-265VAC
● Control current: Parallel ≤30mA, Series ≤10mA
● Reverse-parallel SCR as the output component can be used in commercial or heavy industrial applications with reliable performance
● "Ultra low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Display output status via LED
● Standard output RC snubber circuit
● Industrial radiators and axial fans use standard shapes and materials for excellent heat dissipation
● Over-temperature protection

Notice

● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.

● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.

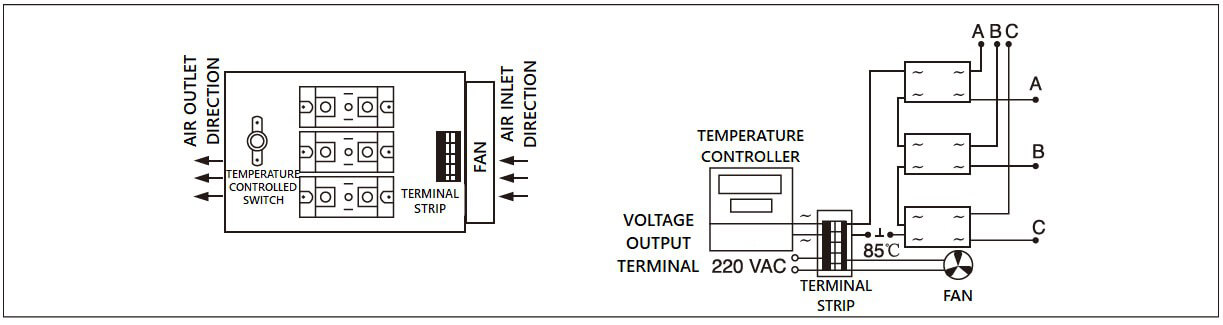

Industrial AC to AC solid state relay dimensions, industrial AC to AC solid state relay circuit diagram and industrial three phase solid state relay wiring diagram of the MGRAH3(3) series industrial three phase AC to AC solid state relay

Note: Specific voltage can be customized.

If you would like more information on this model or other unlisted models, please go to the Resource Page and download the Catalogue. Or contact with us via the form at the bottom of the page.
Click here to know more about Solid State Relay.
