TAG: MAGER MGR-H12(3) SERIES / SOLID STATE RELAY / DC TO AC (DC INPUT AC OUPUT) / INDUSTRIAL / COMBINED / THREE PHASE / ZERO CROSSING / HIGH LOAD VOLTAGE / HIGH LOAD CURRENT / HEAT SINK
Control Voltage: 4~32VDC (such as 4VDC, 6VDC, 8VDC, 9VDC, 12VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤30mA (in parallel), ≤10mA (in series)
Load Voltage: Three phase 30~1200VAC (such as 48VAC, 110VAC, 240VAC, 265VAC, 400VAC, 460VAC, 1200VAC or customized voltage)
Load Current: 150A, 200A, 300A, 400A

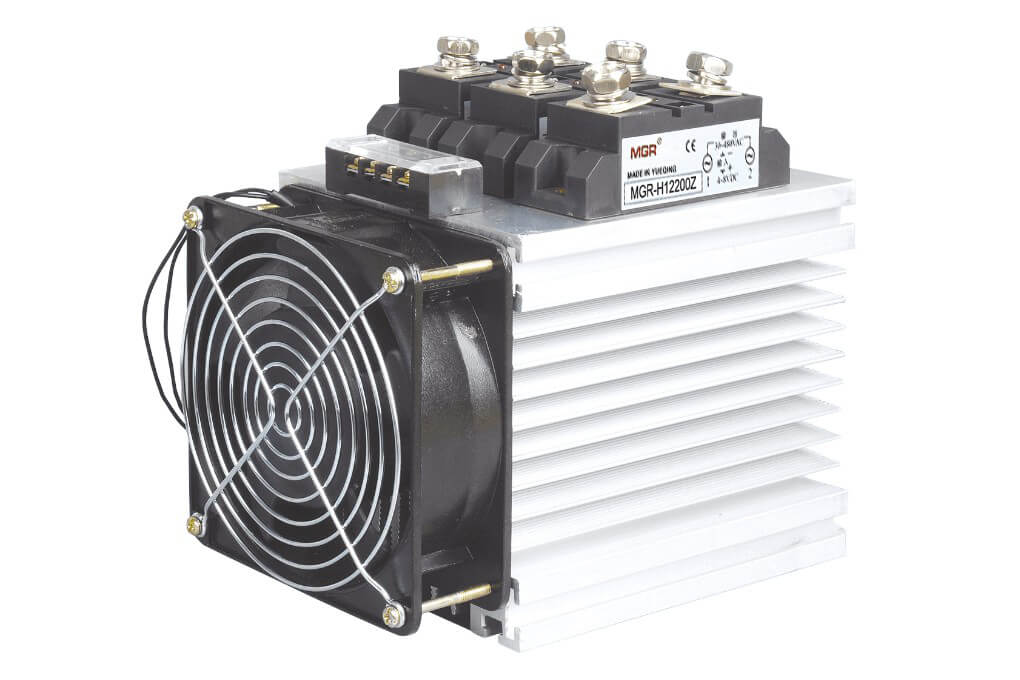

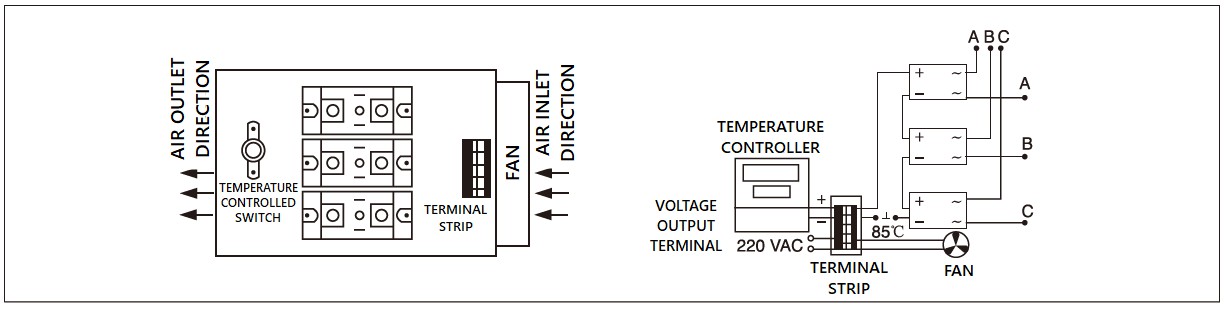

Dimensions & Mounting: Combined with three MGR H12 series single phase DC to AC solid state relays, a heat sink, an air cooler radiator and a temperature control
INDUSTRIAL THREE PHASE DC-AC COMBINED SOLID STATE RELAY
MGR - H: [Long strip] - 12: [Load voltage 30-1200VAC] -200: [200A] -Z: [Zero-crossing type] -3: [Three phase combined solid state relay]
● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.
Note: Specific voltage can be customized.
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
