Product name:MGR-AH3400Z

Product overview:

TAG:  MAGER MGR-AH3 SERIES / SOLID STATE RELAY / AC TO AC (AC INPUT AC OUPUT) / INDUSTRIAL / SINGLE PHASE / ZERO CROSSING / HIGH LOAD CURRENT
Control Voltage:  85~265VAC (such as 100VAC, 110VAC/120VAC, 200VAC, 220VAC/230VAC, 240VAC or customized control voltage)
Control Current:  Ultra low input current, ≤10mA
Load Voltage:  Single phase 30~480VAC (such as 24VAC, 48VAC, 110VAC, 230VAC, 380VAC, 480VAC or customized voltage)
Load Current:  400A, 500A
Dimensions & Mounting:  115mm*53mm*53mm; Panel mount solid state relay with metal base and screw terminals

Content us Return list Download PDF

Product introduction



MGR-AH3400Z

INDUSTRIAL SINGLE PHASE AC-AC SOLID STATE RELAY

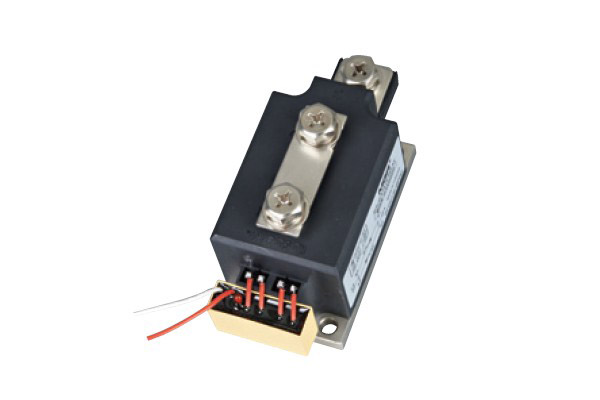

Product Image - MGR AH3400Z

Type meaning

MGR - A: [Control voltage 85-265VAC] -H: [Long strip] - 3: [Control voltage 30-480VAC] -400: [400A]  - Z :[Zero-crossing type]


Features
● Rated current: 400Amps
● Rated voltage: 30-480VAC
● Control voltage: 85-265VAC
● Control current: ≤10mA
● Reverse-parallel SCR as the output component can be used in commercial or heavy industrial applications with reliable performance
● "Ultra low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Display output status via LED
● Standard output RC snubber circuit

Notice

● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.

● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.

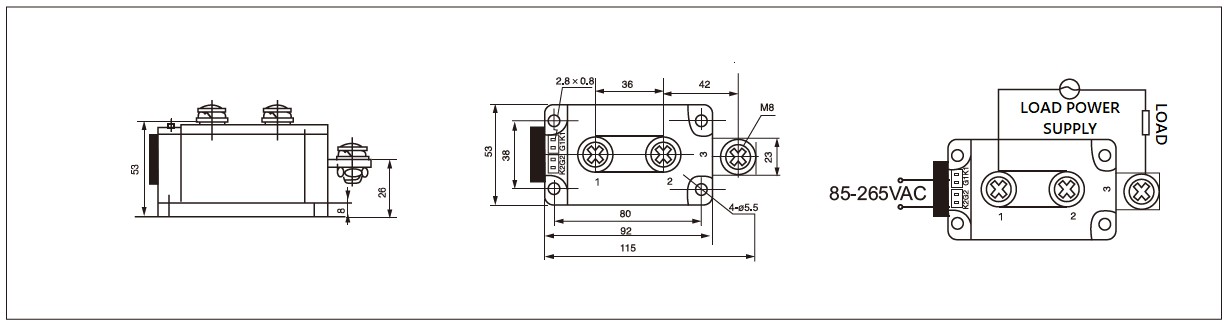

Dimension and circuit diagram - MGR AH3400Z series

Note: Specific voltage can be customized.

Tips
1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor .
