Product name:MGR-1D4840-2H

Product overview:

TAG:  MAGER MGR-1D (2H) SERIES / SOLID STATE RELAY / DC TO AC (DC INPUT AC OUPUT) / SPECIAL / SINGLE PHASE / TWO CHANNEL
Control Voltage:  3~32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current:  Ultra low input current, ≤10mA
Load Voltage:  Single phase 24~480VAC (such as 24VAC, 48VAC, 110VAC, 230VAC, 380VAC, 480VAC or customized load voltage)
Load Current:  10A, 15A, 20A, 25A, 30A, 40A
Dimensions & Mounting:  57.4mm*44.8mm*30.5mm; Panel mount solid state relay with metal base, two I/O channels and plug-in terminals

Content us Return list Download PDF

Product introduction



MGR-1D4840-2H

DUAL CHANNEL SINGLE PHASE AC SOLID STATE RELAY (SPECIAL)

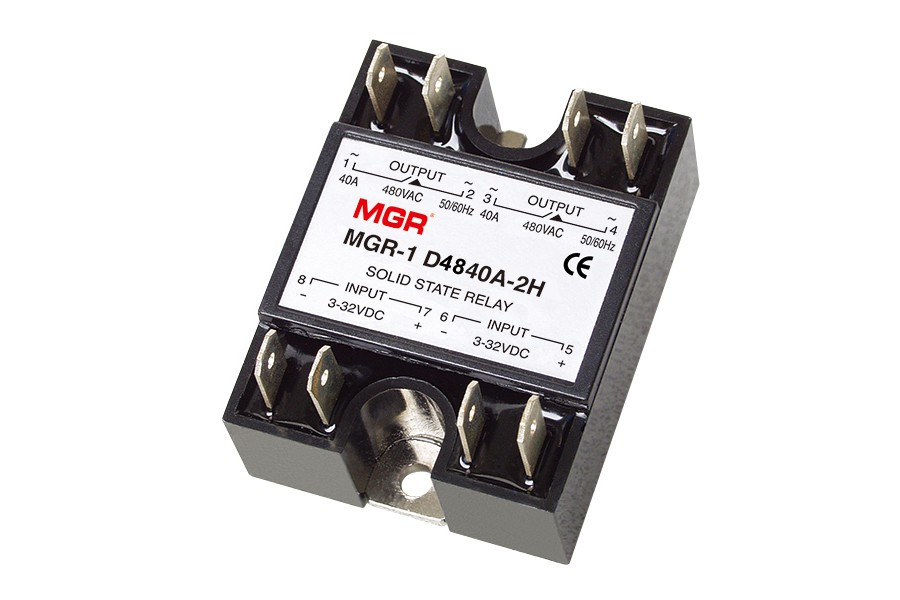

Product Image - MGR 1D4840 2H

Type meaning

MGR - 1:[Single phase] - D:[Control voltage 3-32VDC] - 48:[Load voltage 480VAC] -40:[40A] -2H:[Dual channel]


Features
● Rated current: 40Amps
● Rated voltage: 480VAC
● Control voltage: 3-32VDC
● Control current: ≤10mA
● Two I/O channels, plug-in installation
● Reverse-parallel SCR as the output component can be used in commercial or heavy industrial applications with reliable performance
● "Ultra low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Display output status via LED
● Standard output RC snubber circuit
● Each channel is independent of the other channel, and all channels are freely controllable

Notice

● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.

● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.

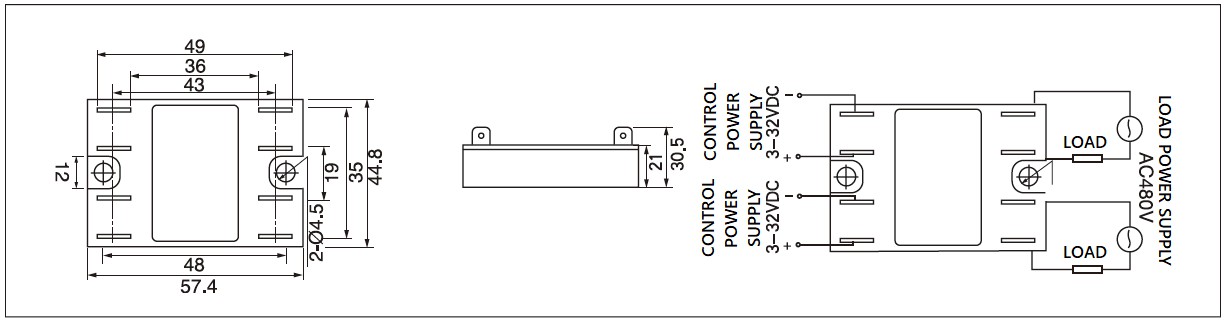

Dimension and circuit diagram - MGR 1D 2H series


If you would like more information on this model or other unlisted models, please go to the Resource Page and download the Catalogue. Or contact with us via the form at the bottom of the page.
Click here to know more about Solid State Relay.
