Differences between EMRs and SSRs
2018-12-10

#1 WHAT ARE THE DIFFERENCES BETWEEN THE TRADITIONAL MECHANICAL RELAYS AND THE SOLID STATE RELAYS?



article banner

How soild state relays work The Relay is an electronic control device that acts as an Electric Switch in almost all electrical and electronic equipment. When the input value reaches the set value, the output value will produce a step change in the output circuit, so the relays are typically used to control large output currents with low input currents. And the relays are also used for automatic adjustment (such as temperature control system), circuit protection and circuit switch.

According to the structure, the relays can be divided into mechanical relays (such as electromagnetic relay or EMR) and non-contact relays (solid state relay or SSR).

How mechanical relays work

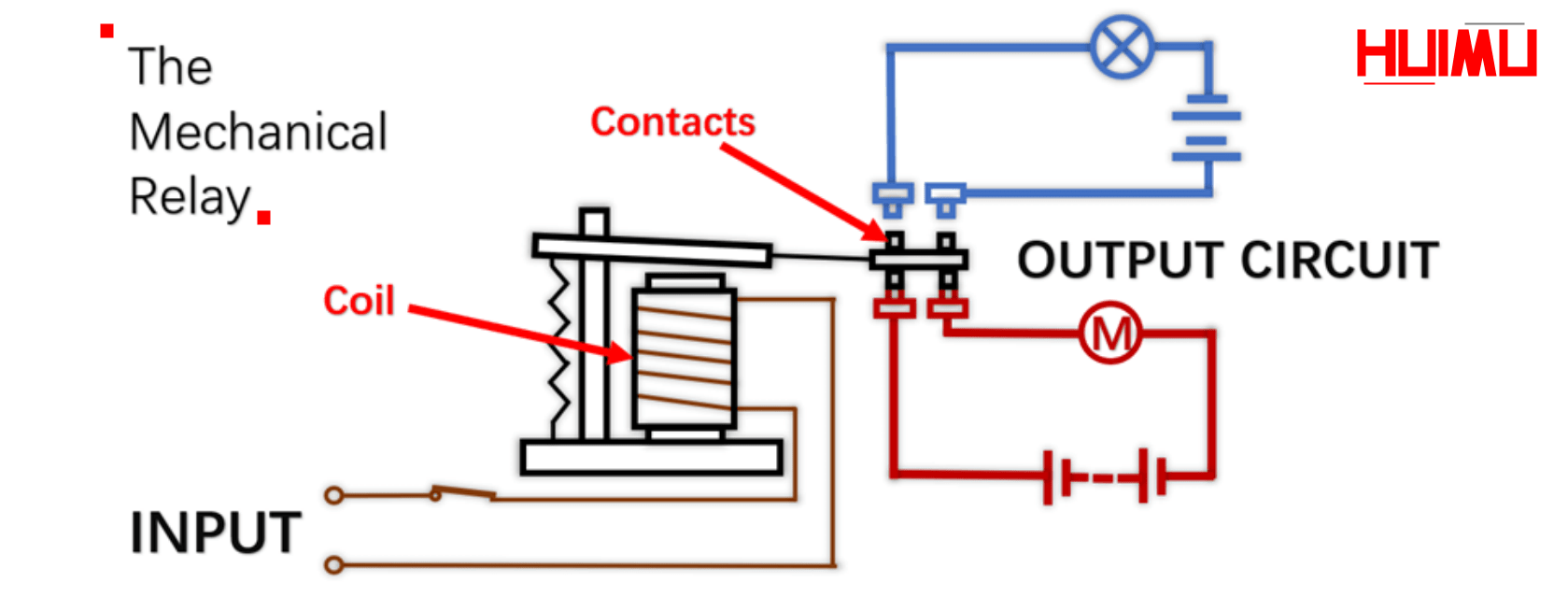

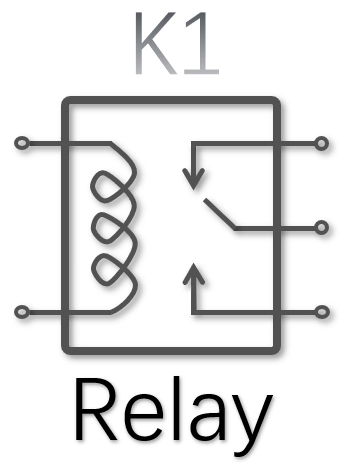

The working principle of the mechanical relay is the principle of electromagnetic induction. The structure of mechanical relay is very classic and has hardly changed since its invention, and consists of two parts: the coil and the contact.Solid-state relay diagram

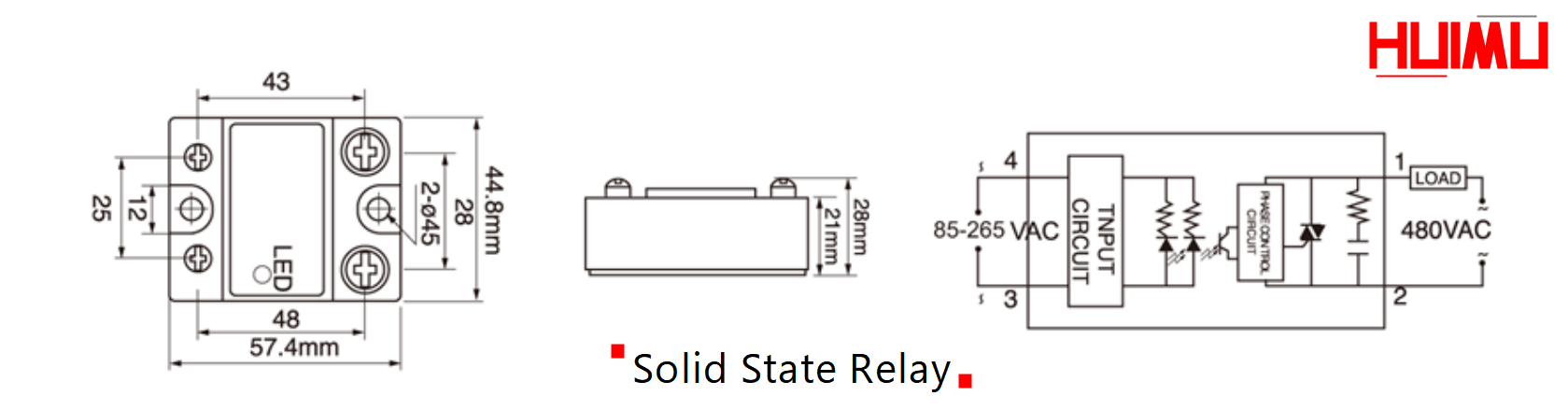

Click here to know more information about the solid state relays



With the development of science and technology, the demand for relays (small size, long service life, high stability, high performance, and high compatibility) is increasing, so the semiconductor components are used as the switching components in the relay. There are no mechanical contact and coil in such relays, which is different with the traditional mechanical relays.


#2 WHY CHOOSE SOLID STATE RELAYS?



ADVANTAGES


Electromagnetic Relay

Solid State Relay

AC and DC compatibleAnti-vibration, anti-shock
Can provide multiple sets of contacts; normally open and normally closed contacts are both availableAnti-corrosion and moisture proof
Cheap priceAsynchronous &  synchronous  switching mode
Compact sizeCompatible with digital circuits
Low residual voltageFast response time
No heat sink requiredLow control power, usually 10-50 mW
No leakage currentLong life, 50-100 times
longer than electromagnetic relays

Low electromagnetic interference(EMI) in synchronous switch mode

No mechanical strain

No mechanical moving parts

No noisy action




DISADVANTAGES


Electromagnetic Relay

Solid State Relay

Contact bounceLeakage current
High control power. Usually higher than 200mWNot suitable for small output signals
Limited contact lifeOnly a single contact
Maximum switching frequency is limited  (5-10mhz)Output can only be AC or DC, not compatible
Noisy actionResidual voltage 1-1.6V
Need interface for the digital loopUsually need a heat sink
Poor working ability for large currents, will produce electric arc
Produce electromagnetic interference (EMI) during operation
Switch action cannot be fully synchronized


The above table helps to compare the advantages and disadvantages of SSR and EMR, and it can be found that the characteristics of SSR and EMR are different due to different structures. However, in actual application, the advantages of SSR are very obvious, and due to the excellent advantages as follows, SSR relays gradually replace the EMR relays in many fields.


1.LONG-LIFE AND HIGH STABILITY

Long life 50-100 timesActually, the life of the mechanical contacts determines the life of the mechanical relay. Since there are no mechanical contacts inside the solid state relay, the service life of the SSR relays will not be shortened due to the strain, aging, corrosion, and adhesion of the contacts. At the same time, there are no mechanical moving parts (such as springs, reeds) inside the solid state relay, so contact bounce and poor contact of moving parts will not occur.

Due to the non-contact structure and the resin shell protection, the solid state relays have good impact resistance, shock resistance and  corrosion resistance. Solid state relays have a wider range of applications than EMR, for examples, the humidity has little effect on the solid state relay and only slightly reduces its insulation performance, but electromagnetic relays are very sensitive to humidity, if exposed to moisture for extended periods of time, the service life of the EMR will be shortened and components will be corroded.

In summary, the life of a solid state relay is 50-100 times that of an electromagnetic relay, and the reliability of solid state relays is far superior to that of electromagnetic relays.


2.COST OF USE

Cost saveThe initial purchase cost of solid state relays is higher than that of electromagnetic relays. But considering of other costs (like the comprehensive service life, the cost of inspection and maintenance, the loss and low efficiency due to the unstable or faulty of relays, and etc.), the average cost of using solid state relays is much lower than that of electromagnetic relays.

In addition, in some applications, additional costs are required to prevent contact vibration and poor contact of the mechanical relay.


3.EFFICIENT CONTROL

Efficient ControlThe operating frequency (or switching rate) of solid state relays is several to several tens of times that of electromagnetic relays, which enables SSRs to be used in equipment that requires high efficiency. Moreover, solid-state relays use semiconductors as signal transmission media, so solid-state relays can be compatible with computer control systems without adding additional circuits and equipment, but EMR cannot do it.

The response time of the solid state relay is much lower than that of the mechanical relay, and the control power of the SSR relay is also lower than that of the EMR relay, which makes the EMR not applicable to equipment that requires short response time and low control power. In some special applications that requires low power factor, the switch must be stable and not subject to vibration, so EMR relays cannot be used either.


4.ELECTROMAGNETIC RADIATION

Low RadiationThe mechanical structure causes the mechanical relay to generate a large amount of electromagnetic interference (EMI) signals during switching period. If there is no addition protection circuit, these interference signals may adversely affect the electronic device and the power grid. And strong electromagnetic interference will even damage the human body.

In contrast, the solid state relay has good electromagnetic compatibility (EMC). And the solid state relay with zero-crossing function can reduce the influence of external interference on SSR, and also reduce the interference signal generated by the solid-state relay itself.

Therefore, if the application requires low electromagnetic interference, only solid state relays recommended.


5.MORE ACTION MODES

More ApplicationThe circuit inside the solid state relay is various and can be flexibly designed according to actual needs. Through the combination of internal components, solid state relays can achieve a variety of control of the output circuit according to different state of control signals and power supplies.

However, electromagnetic relay can only switch the load asynchronously, that is to say, the state of the switch is only controlled by the control signal and is time-independent of the power signal; whereas the solid state relay can realize the control synchronously. Of course, solid state relays have more action modes, such as:
1)Asynchronous mode
2)Synchronous mode
3)Voltage zero or peak sync mode
4)Phase angle mode
5)Pulse mode
