MGR-H_3 Series
Panel Mount Solid State Relay

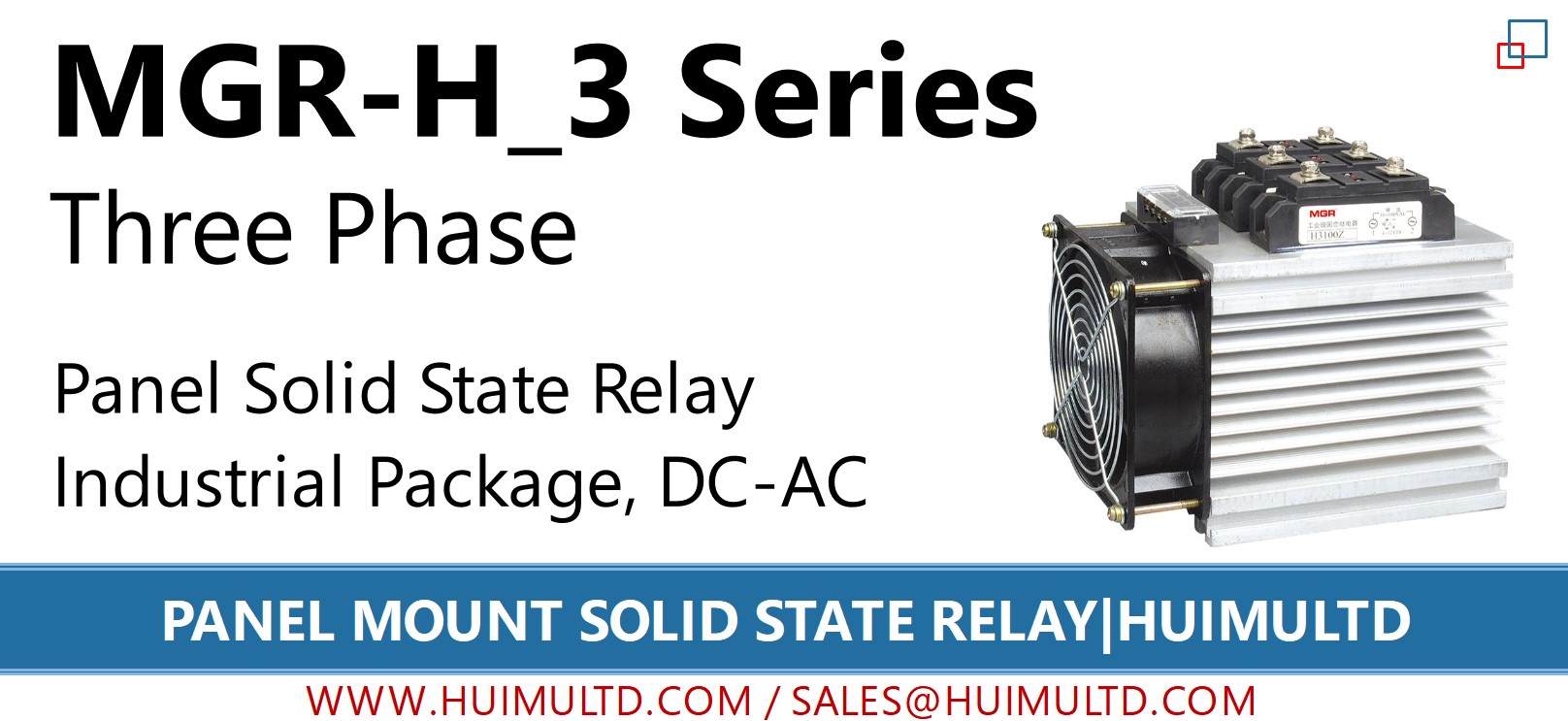

MGR-H_3 Series Panel Mount Solid State Relay

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com.]

Introduction


The MGR-H_3 Series Three Phase Industrial DC to AC Solid State Relay is not a stand-alone device, but consists of three MGR-H Series Single Phase industrial DC to AC solid state relays, a heat sink, an 85℃ temperature controlled switch and an air-cooled fan; so, it is also known as Industrial Three-Phase DC-AC Combined Solid State Relay. When selecting this series of solid state relays, you need to consider whether there is enough installation space. MGR-H_3 features similar to the MGR-H series. According to the load voltage, it is divided into Normal type (480VAC) and High Voltage type (1200VAC). According to load current, it can be divided into Normal type (40A-125A), and Large Current type (150A-400A).

How to order


How to order MGR-H_3 Series Panel Mount Solid State Relay

MGR-H (Panel Mount, Three Phase, DC-AC, Industrial Package)
  - [Load Voltage] {-3 (30-480VAC); -12 (30-1200VAC)}
  - [Rated Current]
  - [Trigger Mode] {-Z (Zero-Crossing)}
  - 3 (Three Phase)

Parameters


MGR-H3_3 Series img

MGR-H3_3 Series

Control Voltage: 4~32VDC (such as 4VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤30mA (in parallel), ≤10mA (in series)
Load Voltage: Three phase 30~480VAC (such as 24VAC, 48VAC, 110VAC, 230VAC, 380VAC, 480VAC or customized voltage)
Load Current: 40A, 60A, 80A, 100A, 120A, 125A
Dimensions & Mounting: Combined with three MGR H3 series single phase DC to AC solid state relays, a heat sink, an air cooler radiator and a temperature control

MGR-H3_3 Series (Large Current) img

MGR-H3_3 Series (Large Current)

Control Voltage: 4~32VDC (such as 4VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤30mA (in parallel), ≤10mA (in series)
Load Voltage: Three phase 30~480VAC (such as 24VAC, 48VAC, 110VAC, 230VAC, 380VAC, 480VAC or customized voltage)
Load Current: 150A, 200A, 300A, 400A
Dimensions & Mounting: Combined with three MGR H3 series single phase DC to AC solid state relays, a heat sink, an air cooler radiator and a temperature control

MGR-H12_3 Series (High Voltage) img

MGR-H12_3 Series (High Voltage)

Control Voltage: 4~32VDC (such as 4VDC, 6VDC, 8VDC, 9VDC, 12VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤30mA (in parallel), ≤10mA (in series)
Load Voltage: Three phase 30~1200VAC (such as 48VAC, 110VAC, 240VAC, 265VAC, 400VAC, 460VAC, 1200VAC or customized voltage)
Load Current: 40A, 60A, 80A, 100A, 120A, 125A
Dimensions & Mounting: Combined with three MGR H12 series single phase DC to AC solid state relays, a heat sink, an air cooler radiator and a temperature control

MGR-H12_3 Series (High Voltage, Large Current) img

MGR-H12_3 Series (High Voltage, Large Current)

Control Voltage: 4~32VDC (such as 4VDC, 6VDC, 8VDC, 9VDC, 12VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤30mA (in parallel), ≤10mA (in series)
Load Voltage: Three phase 30~1200VAC (such as 48VAC, 110VAC, 240VAC, 265VAC, 400VAC, 460VAC, 1200VAC or customized voltage)
Load Current: 150A, 200A, 300A, 400A
Dimensions & Mounting: Combined with three MGR H12 series single phase DC to AC solid state relays, a heat sink, an air cooler radiator and a temperature control

Features


● Reverse-parallel SCR as the output component can be used in commercial or heavy industrial applications with reliable performance
● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Display output status via LED
● Standard output RC snubber circuit
● Industrial radiators and axial fans use standard shapes and materials for excellent heat dissipation
● Over-temperature protection

Dimensions and Circuit Wiring Diagram


MGR-H_3 Series Panel Mount Solid State Relay

MGR-H_3 Series Panel Mount Solid State Relay Diagram

Application


● Various commercial and industrial equipment that requires an electronic switch, especially but not limited to heavy industrial, heating or cooling equipment, professional food equipment, medical machines, remote control system, automotive, lighting system, motion control system, numerical control machinery.

Precautions and FAQs


● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.
● What are the differences between Panel mount SSR and PCB mount SSR?
The panel type solid state relay (or device type, screw mounting type) needs to be fixed on a metal base plate or a heat sink, and is cooled by a heat sink or an air-cooled radiator. The PCB solid state relay (or pin mounting type) has the industry standard pin configurations, and can be mounted directly to the Printed Circuit Board, and the natural cooling as heat dissipation without the need for a heat sink. The PCB type has a smaller mounting size and a larger power density than the panel type.
● What is the difference between a Standard Package SSR (TRIAC output) and an Industrial Package SSR (anti-parallel SCR output)?
For resistive AC loads, the difference between the two is small.
For inductive or capacitive AC loads, when the solid state relay is turned off in the on state, a large voltage-rise rate dv/dt (commutation dv/dt) will occur due to the inconsistent phase of the current and voltage. Such dv/dt affects the output efficiency of TRIAC, or even damages TRIAC, but the effect of commutation dv/dt on anti-parallel SCR is very small. Therefore, for AC loads with large inductance or capacitance, it is more suitable to choose industrial solid state relays.

All Regular Models We Offer


● MGR-H_3 Series (Zero Crossing, DC to AC)

Load voltage 30-480VAC, Zero-Crossing

  • MGR-H340Z-3
  • MGR-H360Z-3
  • MGR-H380Z-3
  • MGR-H3100Z-3
  • MGR-H3120Z-3
  • MGR-H3125Z-3

Load voltage 30-480VAC, Zero-Crossing, Large Current

  • MGR-H3150Z-3
  • MGR-H3200Z-3
  • MGR-H3250Z-3
  • MGR-H3300Z-3
  • MGR-H3350Z-3
  • MGR-H3400Z-3

Load voltage 30-1200VAC, Zero-Crossing

  • MGR-H1240Z-3
  • MGR-H1260Z-3
  • MGR-H1280Z-3
  • MGR-H12100Z-3
  • MGR-H12120Z-3
  • MGR-H12125Z-3

Load voltage 30-1200VAC, Zero-Crossing, Large Current

  • MGR-H12150Z-3
  • MGR-H12200Z-3
  • MGR-H12250Z-3
  • MGR-H12300Z-3
  • MGR-H12350Z-3
  • MGR-H12400Z-3

*Customized models are available, be free to contact us.

Tips

1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
2) You can visit Resource to view and download files.
3) You can visit Products to view and learn about other products.
4) You can visit Information to view and learn about solid state relays/solid state modules knowledge.
5) You can also visit Help, or Contact us to get more support.
