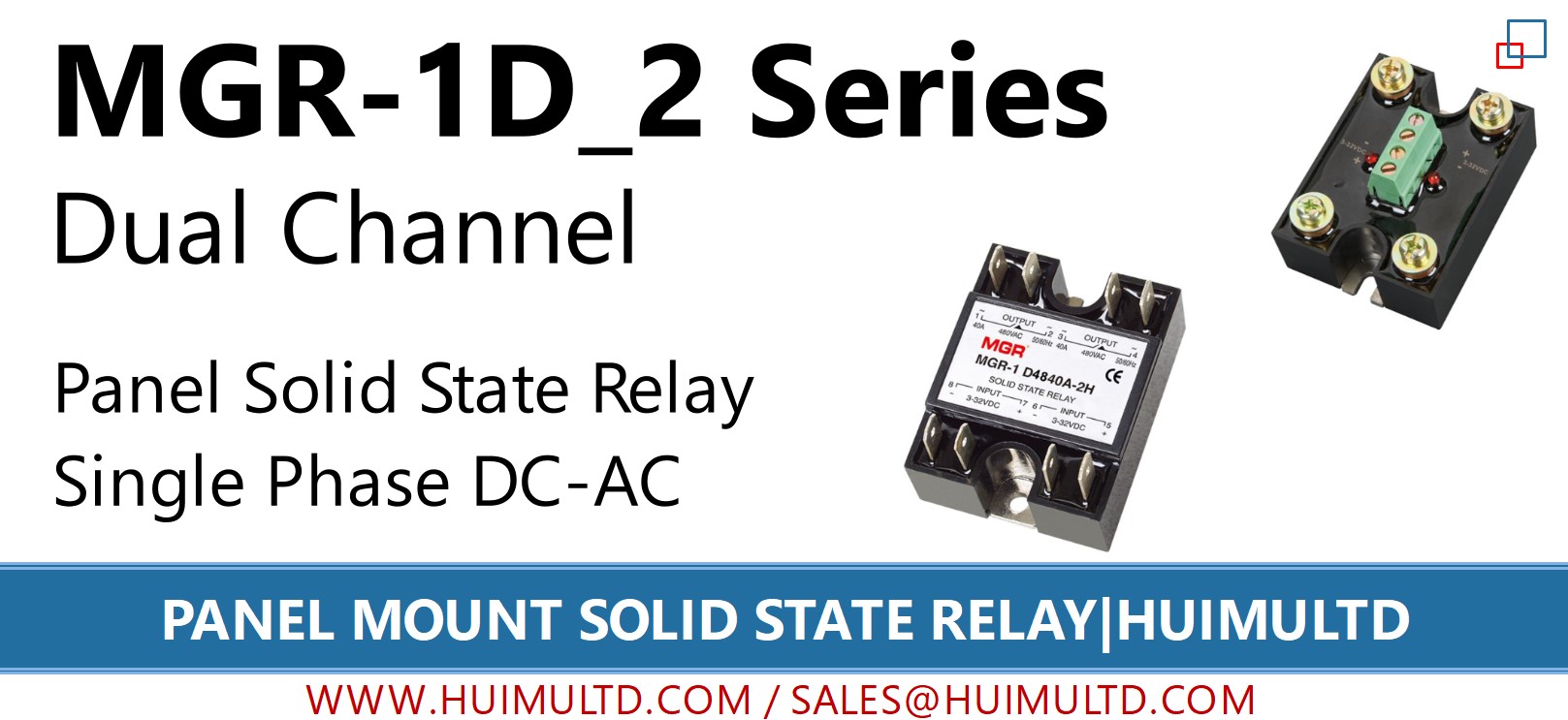

MGR-1D_2 Series
Panel Mount Solid State Relay

MGR-1D_2 Series Panel Mount Solid State Relay

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]

Introduction


MGR-1D_2 Series Dual Channel Panel Mount DC to AC Solid State Relay (or 2 channel solid state relay) is a SPST DC to AC solid state relay, which has two independent I/O channels (input-output), therefore, one MGR-1D_2 Series can act as two MGR-1 Series solid state relays, which means two different loads can be controlled independently through two control signals. According to the wiring method, MGR-1D_2 Series can be divided into MGR-1D_2H Series (Plug-in Wiring, 8-pin) and MGR-1D_2T Series (Lead Wiring, 4-pin). If you need two panel mount solid state relays but the space is not enough, MGR-1D_2 will help you.

How to order


How to order MGR-1D_2 Series Panel Mount Solid State Relay

MGR-1D (Panel Mount, Dual Channel, SPST, Single Phase, DC-AC)
  - [Load Voltage] {(48 (24-480VAC)}
  - [Rated Current]
  - [Channel] {2 (Dual Channel)}
  - [Option] {H (Plug-in Wiring); T (Lead Wiring)}

Parameters


MGR-1D_2H Series img

MGR-1D_2H Series

Control Voltage:  3~32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current:  Ultra low input current, ≤10mA
Load Voltage:  Single phase 24~480VAC (such as 24VAC, 48VAC, 110VAC, 230VAC, 380VAC, 480VAC or customized voltage)
Load Current:  10A, 15A, 20A, 25A, 30A, 40A
Dimensions & Mounting:  57.4mm*44.8mm*30.5mm; Panel mount solid state relay with metal base, two I/O channels and plug-in terminals

MGR-1D_2T Series img

MGR-1D_2T Series

Control Voltage:  3~32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current:  Ultra low input current, ≤10mA
Load Voltage:  Single phase 24~480VAC (such as 24VAC, 48VAC, 110VAC, 230VAC, 380VAC, 480VAC or customized voltage)
Load Current:  10A, 15A, 20A, 25A, 30A, 40A
Dimensions & Mounting:  57.4mm*44.8mm*28mm; Panel mount solid state relay with metal base, two I/O channels and lead terminals

Features


● TRIAC as the output component can be used in commercial or heavy industrial applications with reliable performance
● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Display output status via LED
● Standard output RC snubber circuit
● Each channel is independent of the other channel, and all channels are freely controllable

Dimensions and Circuit Wiring Diagram


MGR-1D_2H Series Panel Mount Solid State Relay

MGR-1D_2H Series Panel Mount Solid State Relay Diagram

MGR-1D_2T Series Panel Mount Solid State Relay

MGR-1D_2T Series Panel Mount Solid State Relay Diagram

Application


● Various commercial and industrial equipment that requires an electronic switch, especially but not limited to heavy industrial, heating or cooling equipment, professional food equipment, medical machines, remote control system, automotive, lighting system, motion control system, numerical control machinery.
● Two I/O Channels (two control signals, two power suppliers, and two different loads); each channel is independent.

Precautions and FAQs


● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.
● What are the differences between Panel mount SSR and PCB mount SSR?
The panel type solid state relay (or device type, screw mounting type) needs to be fixed on a metal base plate or a heat sink, and is cooled by a heat sink or an air-cooled radiator. The PCB solid state relay (or pin mounting type) has the industry standard pin configurations, and can be mounted directly to the Printed Circuit Board, and the natural cooling as heat dissipation without the need for a heat sink. The PCB type has a smaller mounting size and a larger power density than the panel type.

All Regular Models We Offer


● MGR-1D_2H Series (Dual Channel, DC to AC)

Load voltage 24~480VAC

  • MGR-1D48102H
  • MGR-1D48152H
  • MGR-1D48202H
  • MGR-1D48252H
  • MGR-1D48302H
  • MGR-1D48402H

● MGR-1D_2T Series (Dual Channel, DC to AC)

Load voltage 24~480VAC

  • MGR-1D48102T
  • MGR-1D48152T
  • MGR-1D48202T
  • MGR-1D48252T
  • MGR-1D48302T
  • MGR-1D48402T

*Customized models are available, be free to contact us.

Tips

1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
2) You can visit Blog - Resource to view and download files.
3) You can visit Products to view and learn about other products.
4) You can visit Information to view and learn about solid state relays/solid state modules knowledge.
5) You can also visit Help, or Contact us to get more support.
