GJ Series
PCB Mount Solid State Relay

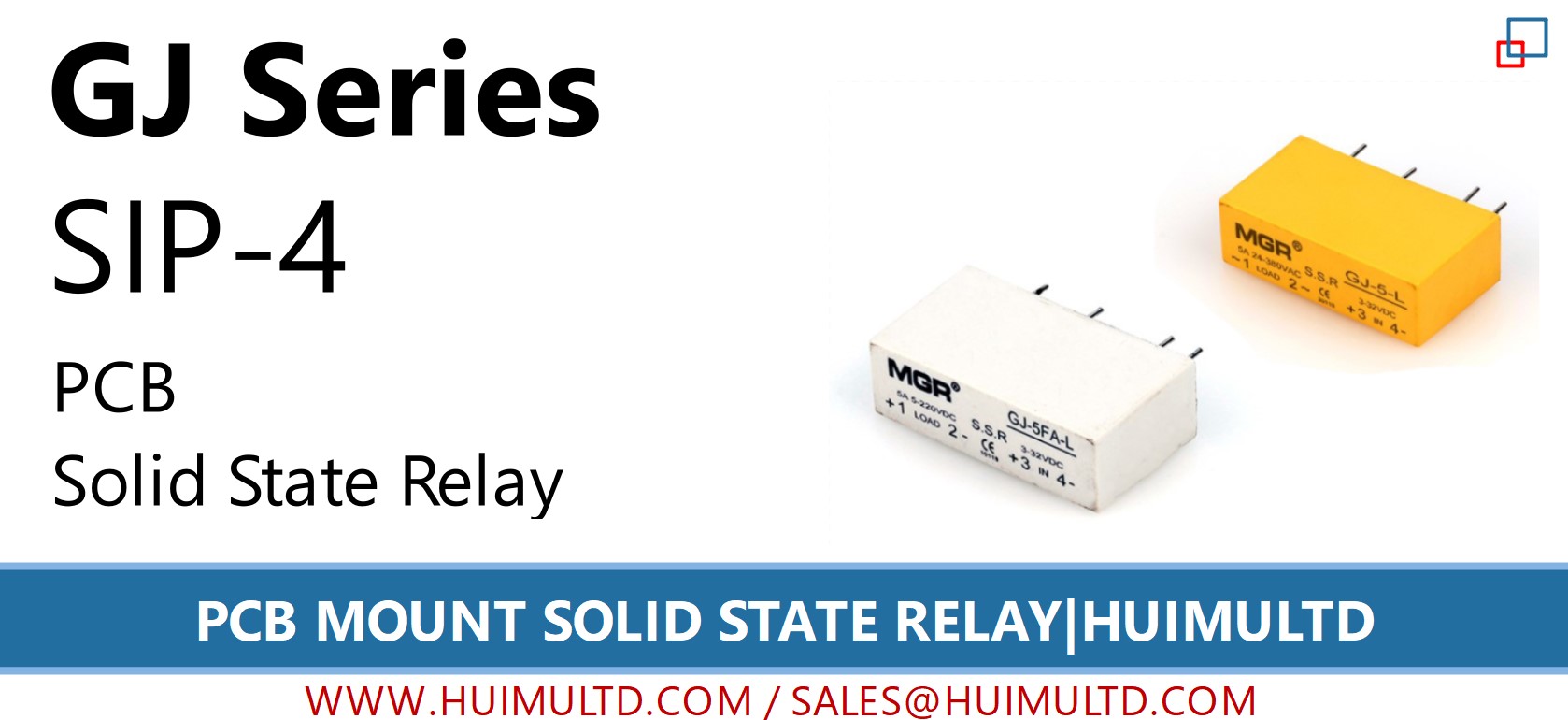

GJ series PCB Mount Solid State Relay

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]

Introduction


GJ series PCB Mount Solid State Relay uses the standard SIP-4 (Single In-line Package 4 pins) configuration, and can be divided into GJ_L series DC to AC PCB mount solid state relay, GJ_FAL series DC to DC PCB mount solid state relay.

How to order


How to order GJ series PCB Mount Solid State Relay

GJ (PCB Mount, SIP-4)
  - [Rated Current]
  - [Input-Output] {L (DC-AC); FAL (DC-DC)}

Parameters


GJ_L series PCB Mount Solid State Relay

GJ_L Series

Control Voltage: 3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 220VAC / 380VAC
Load Current: 1A, 3A, 5A
Dimensions & Mounting: 38.5mm*22mm*12.5mm; PCB mount solid state relay with plastic housing, British standard PCB mounting dimensions, and SIP 4-pin package

GJ_FAL series PCB Mount Solid State Relay

GJ_FAL Series

Control Voltage: 3-32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Control Current: Ultra low input current, ≤10mA
Load Voltage: 5-220VDC (such as 5VDC, 12VDC, 24VDC, 27VDC, 36VDC, 60VDC, 96VDC, 160VDC, 220VDC or customized voltage)
Load Current: 1A, 3A, 5A
Dimensions & Mounting: 38.5mm*22mm*12.5mm; PCB mount solid state relay with plastic housing, British standard PCB mounting dimensions, and SIP 4-pin package

Features


GJ_L Series

● SIP 4-pin package
● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Standard output RC snubber circuit
● British standard PCB mounting dimensions

GJ_FAL Series

● SIP 4-pin package
● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Low-impedance MOSFET as the output component minimize the total power consumption
● British standard PCB mounting dimensions

Dimensions and Circuit Wiring Diagram


GJ_L Series PCB Mount Solid State Relay

GJ_L Series PCB Mount Solid State Relay diagram

GJ_FAL Series PCB Mount Solid State Relay

GJ_FAL Series PCB Mount Solid State Relay diagram

Application


● Various commercial and industrial equipment that requires an electronic switch, especially but not limited to air conditioners, balers, household appliances, heating or cooling equipment, professional food equipment, medical machines, remote control system, automotive, lighting system, motion control system, numerical control machinery.
● High power density, low mounting density (limited installation space), no additional heat sink required.

Precautions and FAQs


● What are the differences between Panel mount SSR and PCB mount SSR?
The panel type solid state relay (or device type, screw mounting type) needs to be fixed on a metal base plate or a heat sink, and is cooled by a heat sink or an air-cooled radiator. The PCB solid state relay (or pin mounting type) has the industry standard pin configurations, and can be mounted directly to the Printed Circuit Board, and the natural cooling as heat dissipation without the need for a heat sink. The PCB type has a smaller mounting size and a larger power density than the panel type.

All Regular Models We Offer


● GJ_L Series (SIP-4, DC to AC)

● GJ_FAL Series (SIP-4, DC to DC)

*Customized models are available, be free to contact us.
