MGR-1M Series
Electrical Motor Controller

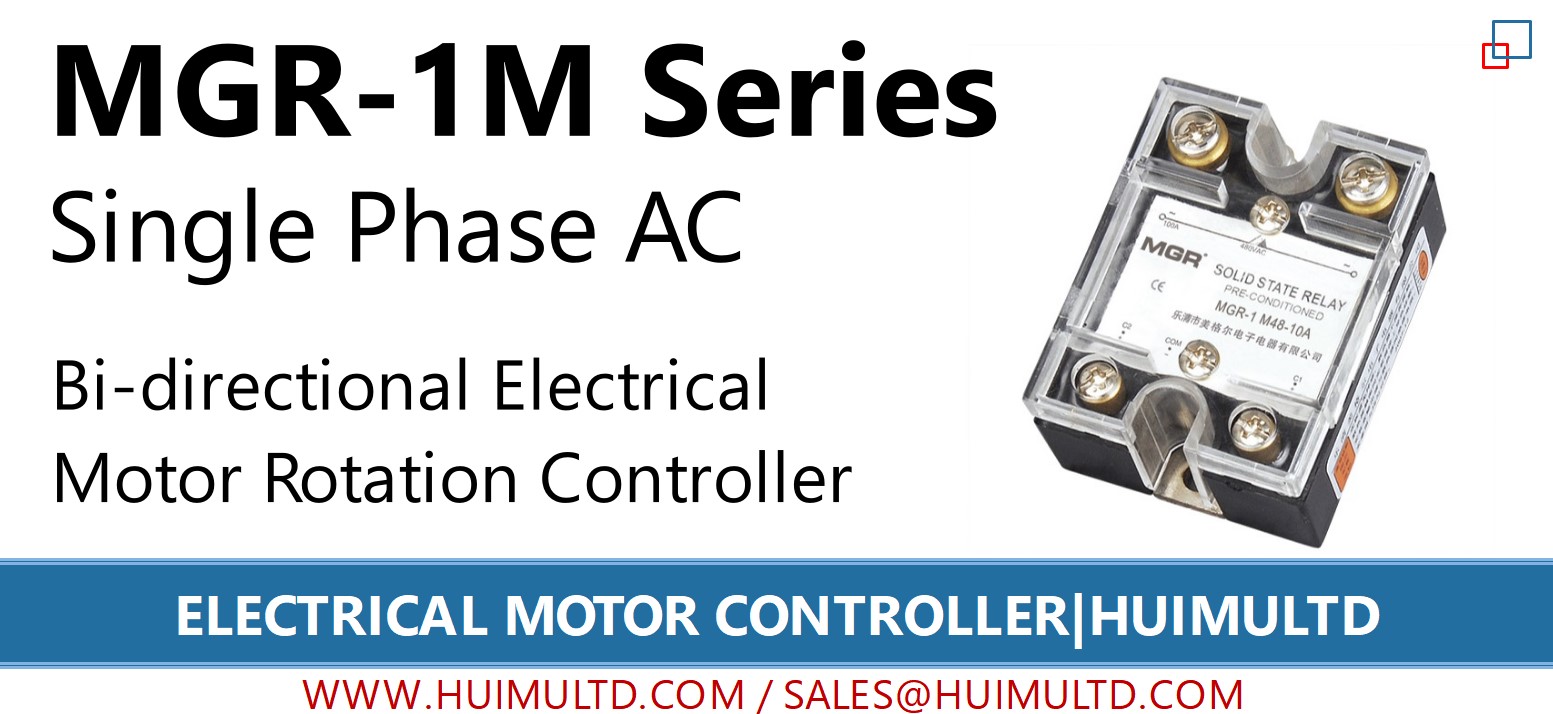

MGR-1M Series Electrical Motor Controller

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com.]

Introduction


MGR-1M Series Single Phase AC Reversible Electrical Motor Rotation Controller is a Panel Mount DPDT DC to AC solid state relay. MGR-1M Series uses DC control signal to control the direction of the Single Phase AC Bi-directional Electrical Motor.

How to order


How to order MGR-1M Series Electrical Motor Controller

MGR-1M (Single Phase AC Bi-directional Electrical Motor Rotation Controller)
  - [Load Voltage] {-22 (220VAC); -38 (380VAC); -48 (480VAC)}
  - [Rated Current]

Parameters


MGR-1M Series img

MGR-1M Series

Control Voltage:  3~32VDC (such as 3VDC, 5VDC, 9VDC, 12VDC, 18VDC, 24VDC, 32VDC or customized control voltage)
Load Voltage:  220VAC; 380VAC; 480VAC
Load Current:  10A, 20A, 25A, 40A, 50A
Dimensions & Mounting:  57.4mm*44.8mm*28mm; Panel mount solid state relay with transparent cover, metal base and screw terminals

Features


● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Standard output RC snubber circuit
● Transparent cover for extra protection
● Built-in forward/reverse interlock protection function

Dimensions and Circuit Wiring Diagram


MGR-1M Series Electrical Motor Controller

MGR-1M Series Electrical Motor Controller Diagram

Application


● Single Phase AC Bi-Directional Electrical Motor

Precautions and FAQs


● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.
● What are the differences between Panel mount SSR and PCB mount SSR?
The panel type solid state relay (or device type, screw mounting type) needs to be fixed on a metal base plate or a heat sink, and is cooled by a heat sink or an air-cooled radiator. The PCB solid state relay (or pin mounting type) has the industry standard pin configurations, and can be mounted directly to the Printed Circuit Board, and the natural cooling as heat dissipation without the need for a heat sink. The PCB type has a smaller mounting size and a larger power density than the panel type.
● What is the DPDT solid state relay?
DPDT circuit consists of two couples of SPDT circuit, and can control four different loads with one control signal, and only two loads can be switched on at the same time. Normally, DPDT solid state relay will be used to control the direction of the Electrical Bi-Directional Motor (Forward/Reverse, FWD/REV). If you want to know more about SPDT SSR, please visit What is the DPDT Solid State Relay?

All Regular Models We Offer


● MGR-1M Series (Single Phase AC Revisable Motor Rotation Controller, DPDT)

Load voltage 480VAC

  • MGR-1M4810
  • MGR-1M4820
  • MGR-1M4825
  • MGR-1M4840
  • MGR-1M4850

*Customized models are available, be free to contact us.

Tips

1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
