MGR-EUV Series
Voltage Power Regulator

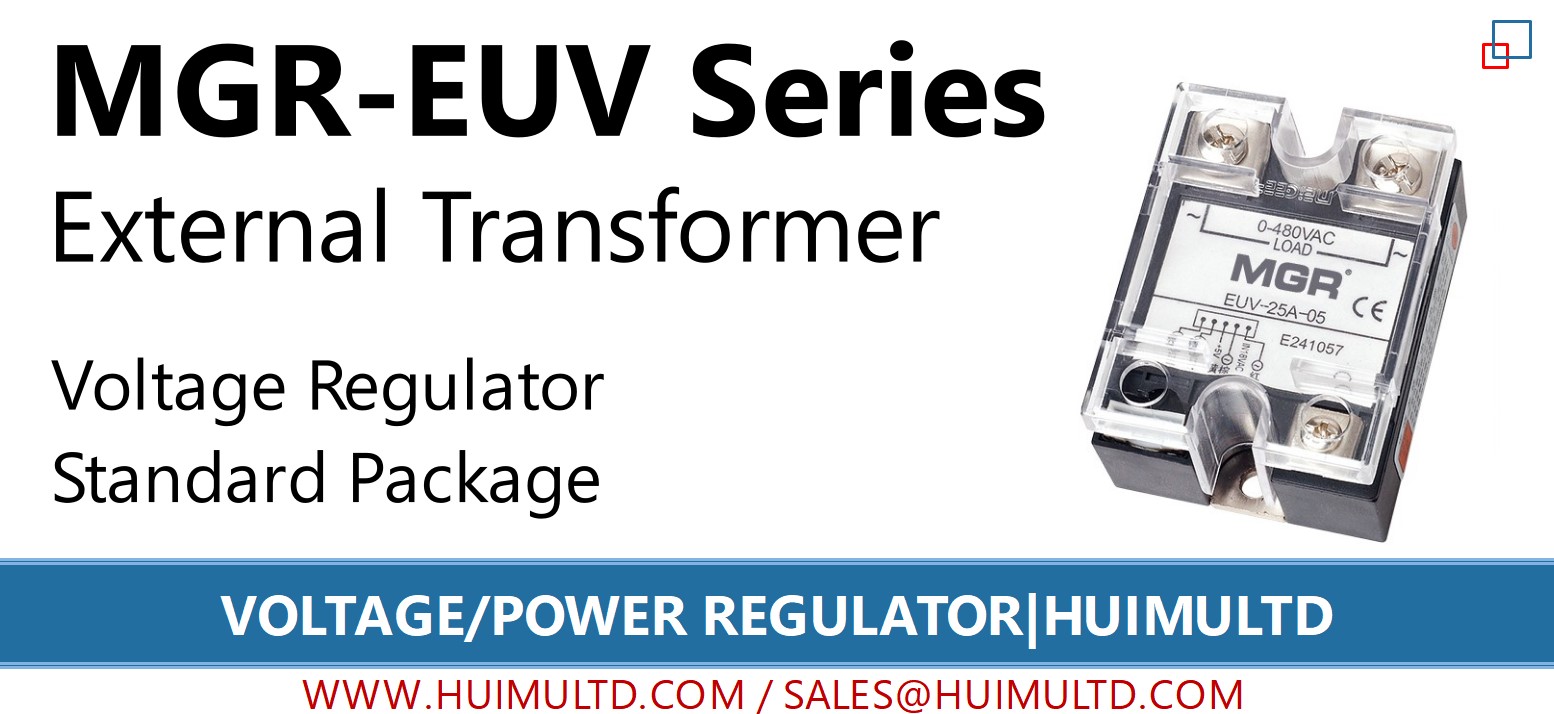

MGR-EUV Series Voltage Power Regulator

[All the information on this website is for reference only, and the actual product and the accompanying product manual shall prevail. If you have any questions, please contact webmaster@huimultd.com]

Introduction


MGR-EUV Series Full Isolation Solid State Voltage Regulator uses Standard Package, has the same function and parameters as the MGR-DTY Series Full Isolation Sigle Phase AC Voltage Regulator Module, but do not have the internal Synchronous Transformer. Therefore, if you choose MGR-EUV Series, you should prepare a transformer. The load signal (strong current parts) and the control signal (weak current parts) are fully electrical isolated. Through manual control signal (adjustment of potentiometer) or automatic control signal (E: CON 0~5V; F: CON 0~10V; G: CON 4~20mA; H: CON 1~5V), MGR-EUV Series can stepless control the load voltage of the single phase AC load.

How to order


How to order MGR-EUV Series Voltage Power Regulator

MGR-EUV (Single Phase External Transformer Type Voltage Regulator, Standard Package)
  - [Rated Current]
  - [Control Signal] {E (0~5VDC); F (0~10VDC); G (4~20mA); H (1~5VDC)}

Parameters


MGR-EUV Series img

MGR-EUV Series

Control Signal:  E: CON 0~5V; F: CON 0~10V; G: CON 4~20mA; H: CON 1~5V
*(E, F, H types can be controlled by the manual control circuit, G type cannot be adjusted with the potentiometer)
Load Voltage:  220VAC / 380VAC
Load Current:  Enhanced Type--10A, 40A, 80A, 120A, 160A, 200A, 250A, 300A; Half-Wave Type--10A, 25A, 50A
Dimensions & Mounting:  57.4mm*44.8mm*28mm, Panel mount solid state module with transparent cover, metal base and screw terminals

Features


● "Ultra-low" input current
● Low output off-state leakage current
● Low output on-state voltage drop
● Standard output RC snubber circuit
● Fully compatible with different control methods, allowing the computer to easily adjust voltage through the network

Dimensions and Circuit Wiring Diagram


MGR-EUV Series Voltage Power Regulator

MGR-EUV Series Voltage Power Regulator Diagram

● Red and brown ports are connected to the 18VAC secondary winding of the synchronous transformer
● Blue port is the internal common ground terminal
● Green port is the control terminal
● Yellow port is the +5V voltage terminal generated inside the module
● E, F, H types can be controlled by manual, and G type cannot

Application


● Applications that need voltage adjustment.

Precautions and FAQs


● If the load current is 10A, a heat sink must be equipped; if the load current is 40A or more, an air-cooled radiator or a water-cooled radiator must be installed.
● When the load is an inductive load, be sure to connect a varistor in parallel with the output terminal, whose voltage value is 1.6-1.9 times the load voltage.

All Regular Models We Offer


● MGR-EUV Series (Single Phase, Full Isolation, External Transformer)

Load Voltage 0~240VAC, 0~380VAC; Control Signal 0-5VDC; Enhanced Type

  • MGR-EUV10AE
  • MGR-EUV40AE
  • MGR-EUV80AE
  • MGR-EUV120AE
  • MGR-EUV160AE
  • MGR-EUV200AE
  • MGR-EUV250AE
  • MGR-EUV300AE

Load Voltage 0~240VAC, 0~380VAC; Control Signal 0-10VDC; Enhanced Type

  • MGR-EUV10AF
  • MGR-EUV40AF
  • MGR-EUV80AF
  • MGR-EUV120AF
  • MGR-EUV160AF
  • MGR-EUV200AF
  • MGR-EUV250AF
  • MGR-EUV300AF

Load Voltage 0~240VAC, 0~380VAC; Control Signal 4-20mA; Enhanced Type

  • MGR-EUV10AG
  • MGR-EUV40AG
  • MGR-EUV80AG
  • MGR-EUV120AG
  • MGR-EUV160AG
  • MGR-EUV200AG
  • MGR-EUV250AG
  • MGR-EUV300AG

Load Voltage 0~240VAC, 0~380VAC; Control Signal 1-5VDC; Enhanced Type

  • MGR-EUV10AH
  • MGR-EUV40AH
  • MGR-EUV80AH
  • MGR-EUV120AH
  • MGR-EUV160AH
  • MGR-EUV200AH
  • MGR-EUV250AH
  • MGR-EUV300AH

Load Voltage 0~240VAC, 0~380VAC; Control Signal 0-5VDC; Full Wave Type or Full Bridge Type

Load Voltage 0~240VAC, 0~380VAC; Control Signal 0-10VDC; Full Wave Type or Full Bridge Type

  • MGR-EUV10AF
  • MGR-EUV25AF
  • MGR-EUV50AF

Load Voltage 0~240VAC, 0~380VAC; Control Signal 4-20mA; Full Wave Type or Full Bridge Type

  • MGR-EUV10AG
  • MGR-EUV25AG
  • MGR-EUV50AG

Load Voltage 0~240VAC, 0~380VAC; Control Signal 1-5VDC; Full Wave Type or Full Bridge Type

  • MGR-EUV10AH
  • MGR-EUV25AH
  • MGR-EUV50AH

(E type: CON 0-5V; F type: CON 0-10V; G type: CON 4-20mA; H type: CON 1-5V)

*Customized models are available, be free to contact us.

Tips

1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Factor.
2) You can visit Blog - Resource to view and download files.
3) You can visit Products to view and learn about other products.
4) You can visit Information to view and learn about solid state relays/solid state modules knowledge.
5) You can also visit Help, or Contact us to get more support.
