MTC, MTA, MTK, MTX Series
Solid State Rectifier

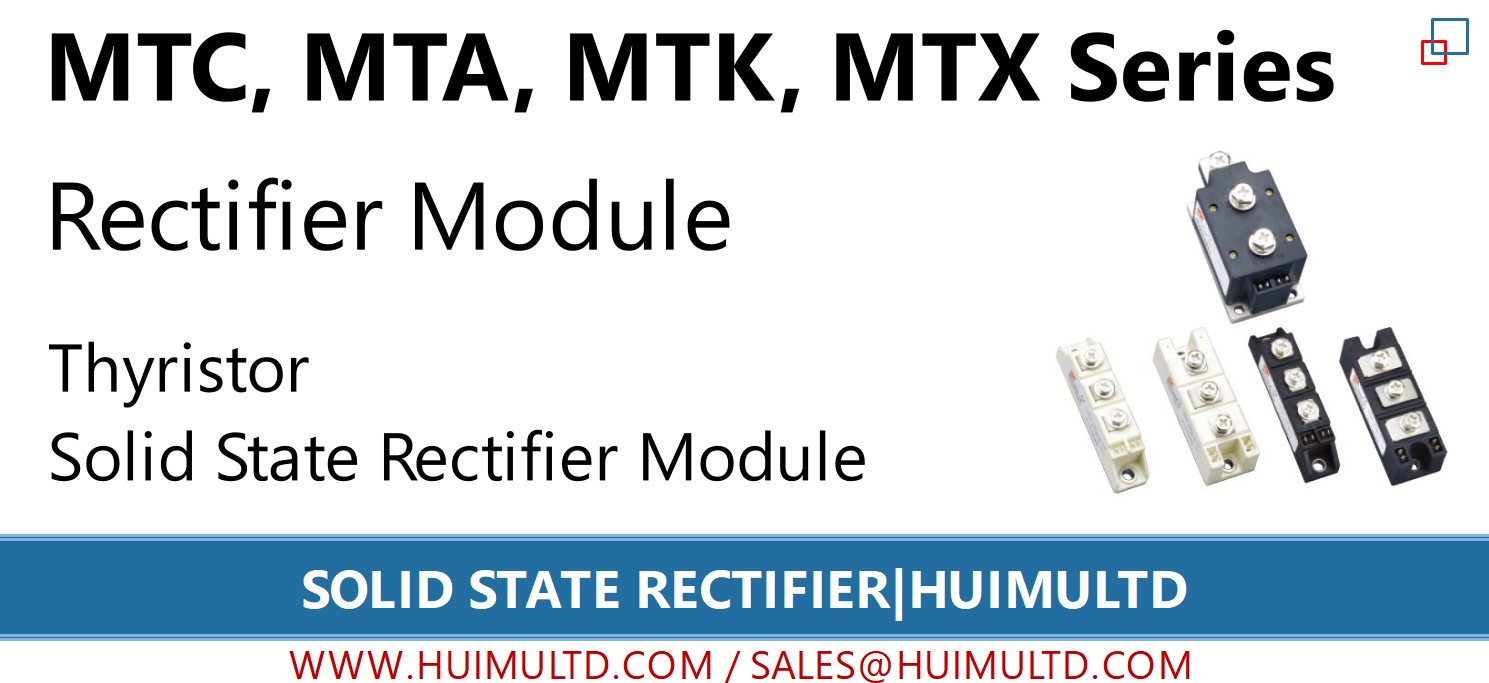

MTC, MTA, MTK, MTX Series Solid State Rectifier

Introduction


MT Series solid state thyristor module are available in a wide range of applications. According to the control mode, MT Series can be divided into MTC Series, MTA Series, MTK Series and MTX Series.

How to order


How to order MTC, MTA, MTK, MTX Series Solid State Rectifier

[Series] {-MTC; -MTA; -MTK; -MTX}
  - [Rated Current]

Parameters


MTC, MTA, MTK, MTX Series  img

MTC, MTA, MTK, MTX Series

Load Current:  25A, 55A, 70A, 90A, 110A, 130A, 160A, 200A, 250A, 300A, 400A, 500A, 800A, 1000A
Dimensions & Mounting:  Click here to get the corresponding overall dimensions according to the shape code, Panel mount solid state module with plastic cover, metal base and screw terminals

Features


● Electrical insulation between the chip and the backplane with insulation voltage 2500VAC
● International standard package
● "Vacuum + hydrogenation protection" welding technology
● Crimp style structure, excellent thermal cycling and power cycle capability
● If the current is below 350A, the module is cooled by forced air cooling; if the current is more than 400A, the cooling method can be either air-cooling or water-cooling.
● Easy to install, easy to apply and maintain
● Compact dimensions and low weight

Dimensions and Circuit Wiring Diagram


MTC, MTA, MTK, MTX Series

MTC, MTA, MTK, MTX Series Diagram

Application


● Control system of AC and DC motor
● Various rectification power supplies
● Industrial heating control system
● Lighting system
● Contactless switch
● Motor soft start
● Static var compensator
● Welding machine
● Frequency converter
● UPS power supply
● Battery charging and discharging

Precautions and FAQs


● VDSM/VRSM=VDRM/VRRM+200V
● Unless otherwise stated, IGT, VGT, IH, VTM, and VISO are all tested at 25 °C, and other parameters in the table are tested at Tjm.
● I2t=I2TSM×tw/2; In the formula, tw=half period of sinusoidal current. If the frequency is 50Hz, I2t=0.005I2TSM (Amps2 sec)

All Regular Models We Offer


● MTC, MTA, MTK, MTX Series

MTC, MTA, MTK, MTX Series Solid State Rectifier List

Note: In the model table, MTx represents any one series of MTC, MTK, MTA, MTX, and MT.
The domestic models corresponding to the imported models PK, SKKT, IR, EMGE, TM, MSG, MCC, MTT, etc., are subject to the circuit diagram.

*Customized models are available, be free to contact us.

Tips


1) When selecting the rated current of the solid state relay/solid state module, please consider the corresponding Derating Fator.
