How to wire voltage regulator?
upload time2019-08-26
banner

HOW TO WIRE MGR VOLTAGE REGULATOR / VOLTAGE CONTROL MODULE?

INTRODUCTION:

The function of the rectifier or rectification solid state relay/module is to convert the AC power to DC power. The rectified solid state relay/module with built-in controllable transistor can be also used as an electronic switch in addition to the rectification function.
Through this article you will learn how to wire the rectifier or rectification solid state relay/module.

You can quickly navigate to the chapters you are interested in through the Directory below, and the Quick Navigator on the right side of the browser.

CONTENTS



§1. How to wire Single Phase AC Voltage Regulator

 §2. How to wire Three Phase AC Voltage Regulator

§3. How to wire AC Voltage Control Module

§1. How to wire Single Phase AC Voltage Regulator

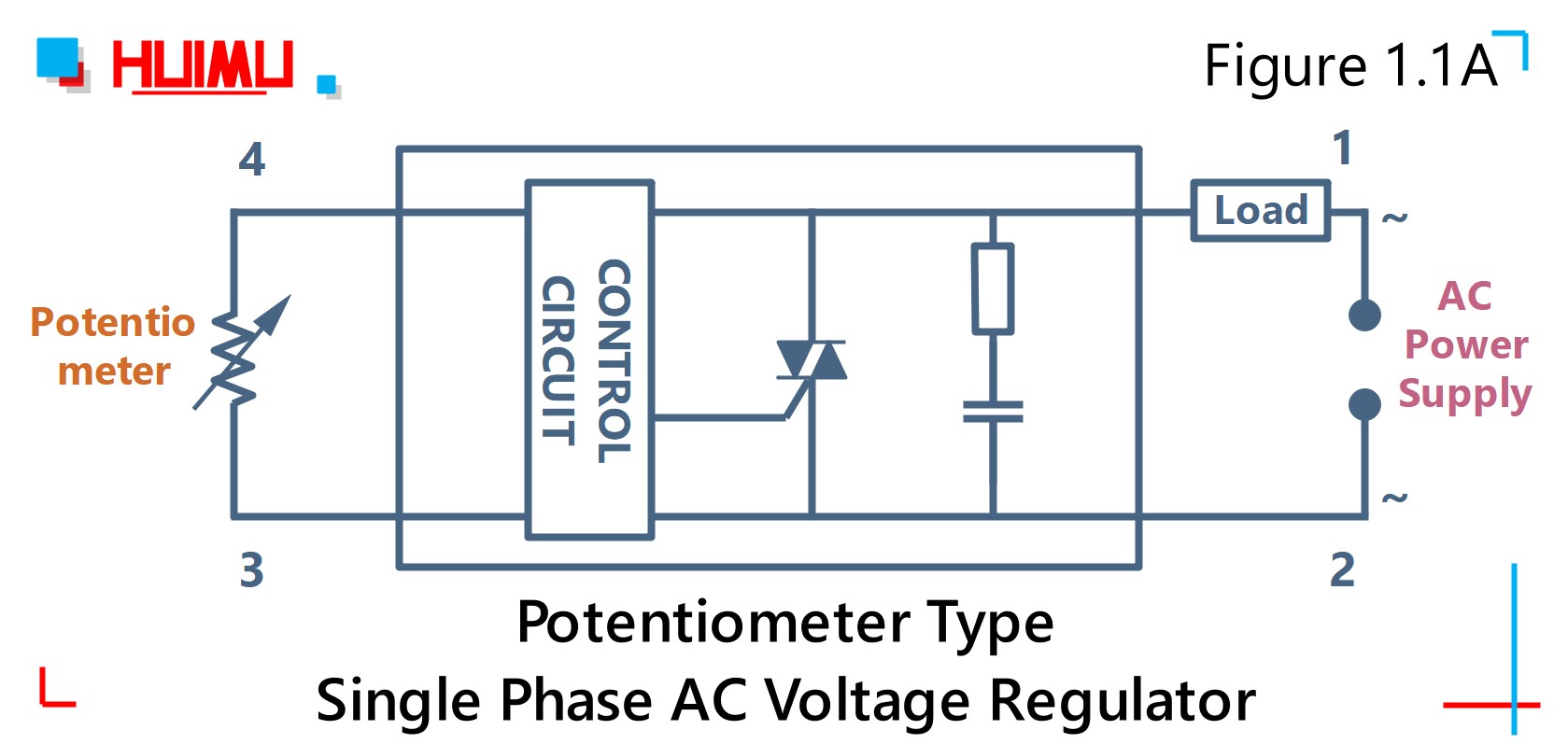

1.1 Potentiometer Type

MGR-R40A or SSVR series

This kind of potentiometer type single phase AC voltage regulator uses a standard housing (rectangle shape) with four terminals. 1 and 2 ports are output terminals that connect single-phase AC power supply and load; 3 and 4 ports are input signal terminals that connect the potentiometer. The conduction angle of the thyristor can be changed by adjusting the potentiometer, to adjust the output voltage to achieve the purpose of regulating and controlling the load voltage.

 Note: Before installation and use, please confirm whether the specifications (such as input current, input voltage, output current, output voltage and etc.) of the voltage regulator meet the requirements of the application.

How to wire MGR mager MGR-R40A potentiometer type single phase AC voltage regulator? More detail via www.@huimultd.com

MGR-HVR120A , MGR-HVR200A

This kind of potentiometer type single phase AC voltage regulator uses an industrial housing (long strip shape) with four terminals, suitable for demanding applications such as industrial and commercial applications. Output terminals are connected to the single-phase AC power supply and load; input signal terminals are connected to the potentiometer. The conduction angle of the thyristor can be changed by adjusting the potentiometer, to adjust the output voltage to achieve the purpose of regulating and controlling the load voltage.

 Note: Before installation and use, please confirm whether the specifications (such as input current, input voltage, output current, output voltage and etc.) of the voltage regulator meet the requirements of the application.

How to wire MGR mager MGR-HVR120A, MGR-HVR200A potentiometer type single phase AC voltage regulator? More detail via www.@huimultd.com

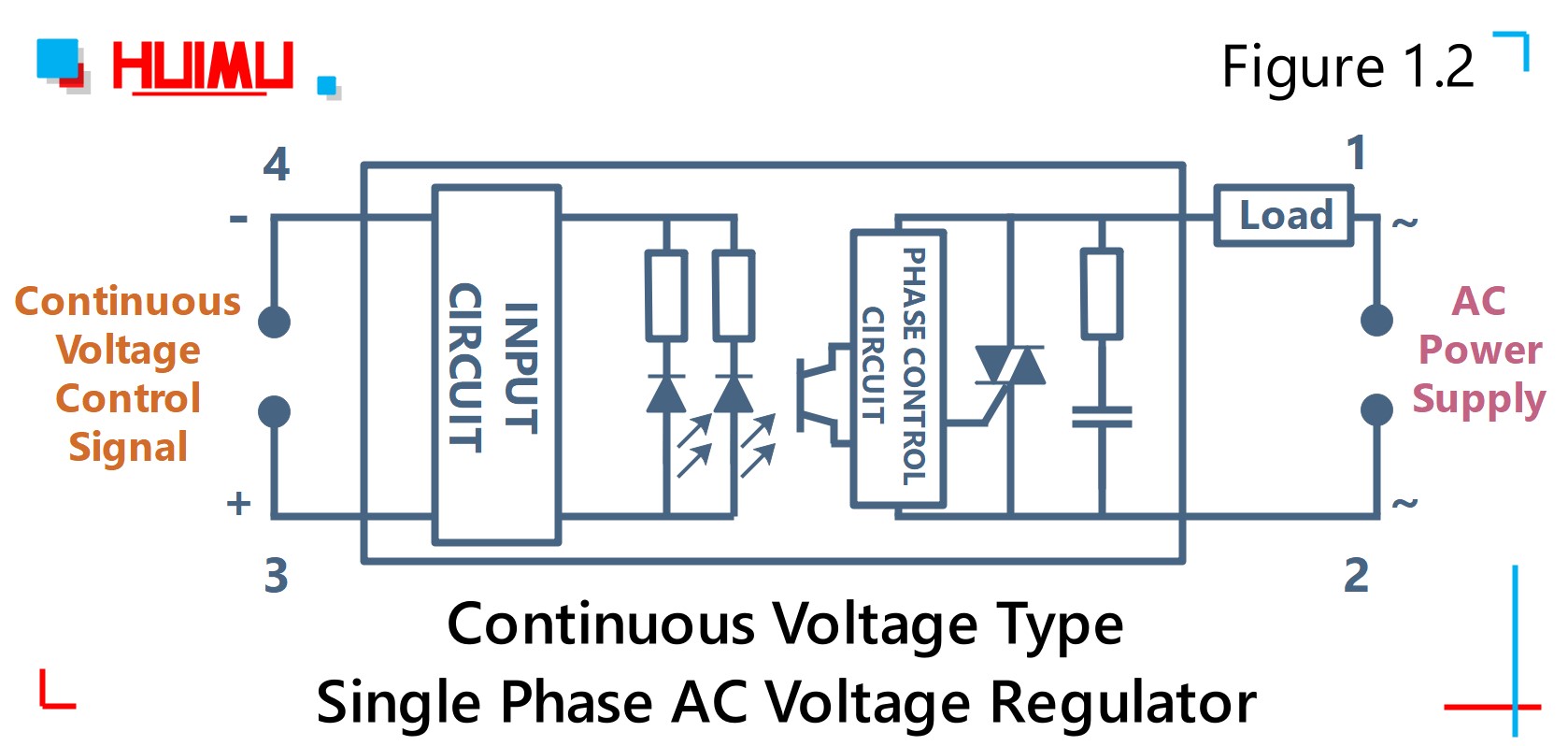

1.2 Analog Signal Type (Continuous Voltage Type)

MGR-1VD2440G or SSVD series

This kind of analog signal type single phase AC voltage regulator uses a standard housing (rectangle shape) with four terminals. 1 and 2 ports are output terminals that connect single-phase AC power supply and load; 3 and 4 ports are input signal terminals that connect the analog control signal device. The control signal is analog continuous voltage, divided into three type--E type:0~5VDC, F type:0~10VDC, G type:4~20VDC. The conduction angle of the thyristor can be changed by adjusting the analog signal, to adjust the output voltage to achieve the purpose of regulating and controlling the load voltage.

 Note: Before installation and use, please confirm whether the specifications (such as input current, input voltage, output current, output voltage and etc.) of the voltage regulator meet the requirements of the application.

How to wire MGR mager MGR-1VD2440G analog signal type single phase AC voltage regulator? More detail via www.@huimultd.com

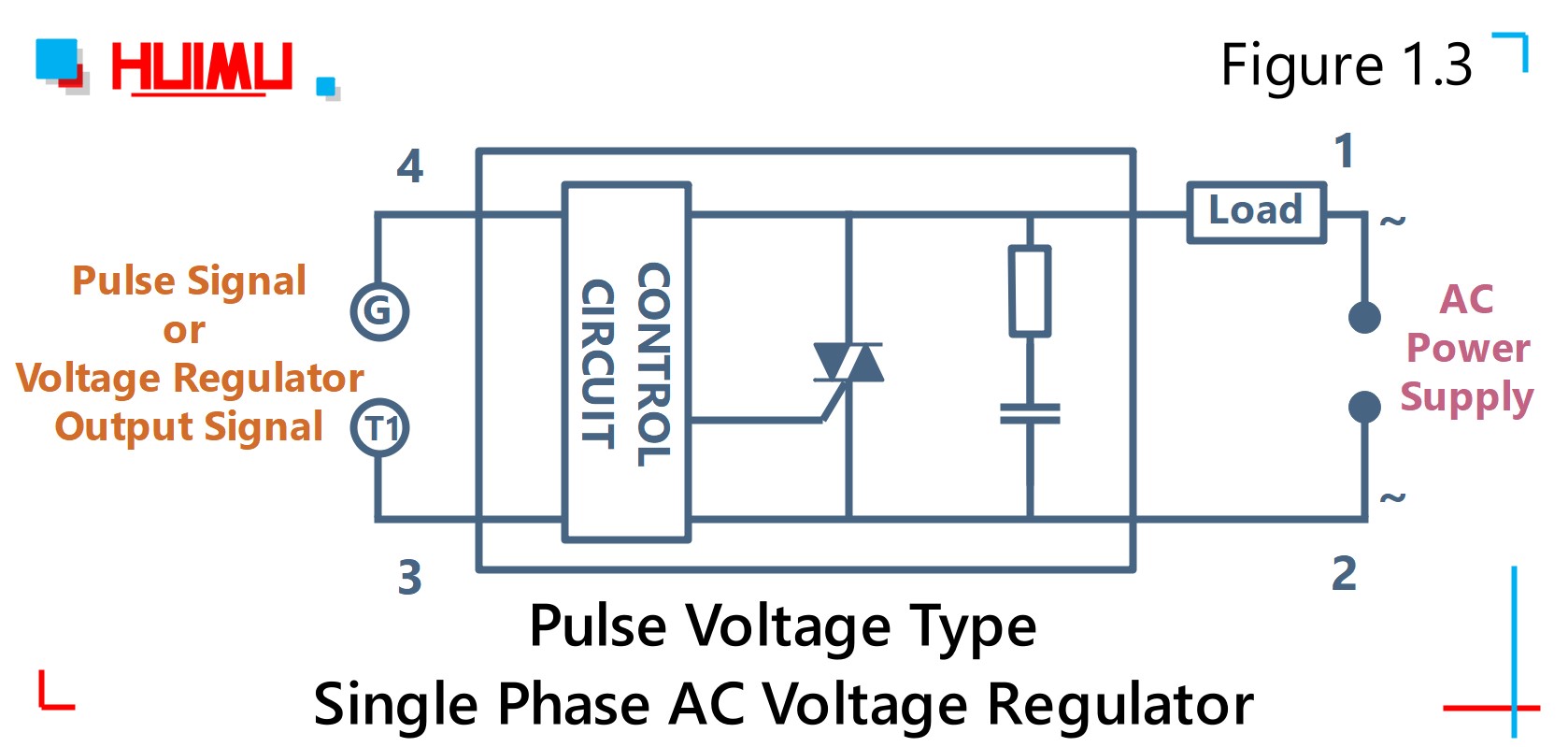

1.3 Digital Signal Type (Pulse Voltage Type)

MGR-25DV

This kind of digital signal type single phase AC voltage regulator uses a standard housing (rectangle shape) with four terminals. 1 and 2 ports are output terminals that connect single-phase AC power supply and load; 3 and 4 ports are input signal terminals that connect the digital control signal device, like the PLC and voltage regulator. The control signal is pulse voltage (mutant and discontinuous). The conduction angle of the thyristor can be changed by adjusting the pulse signal, to adjust the output voltage to achieve the purpose of regulating and controlling the load voltage.

 Note: Before installation and use, please confirm whether the specifications (such as input current, input voltage, output current, output voltage and etc.) of the voltage regulator meet the requirements of the application.

How to wire MGR mager MGR-25DV digital signal type single phase AC voltage regulator? More detail via www.@huimultd.com

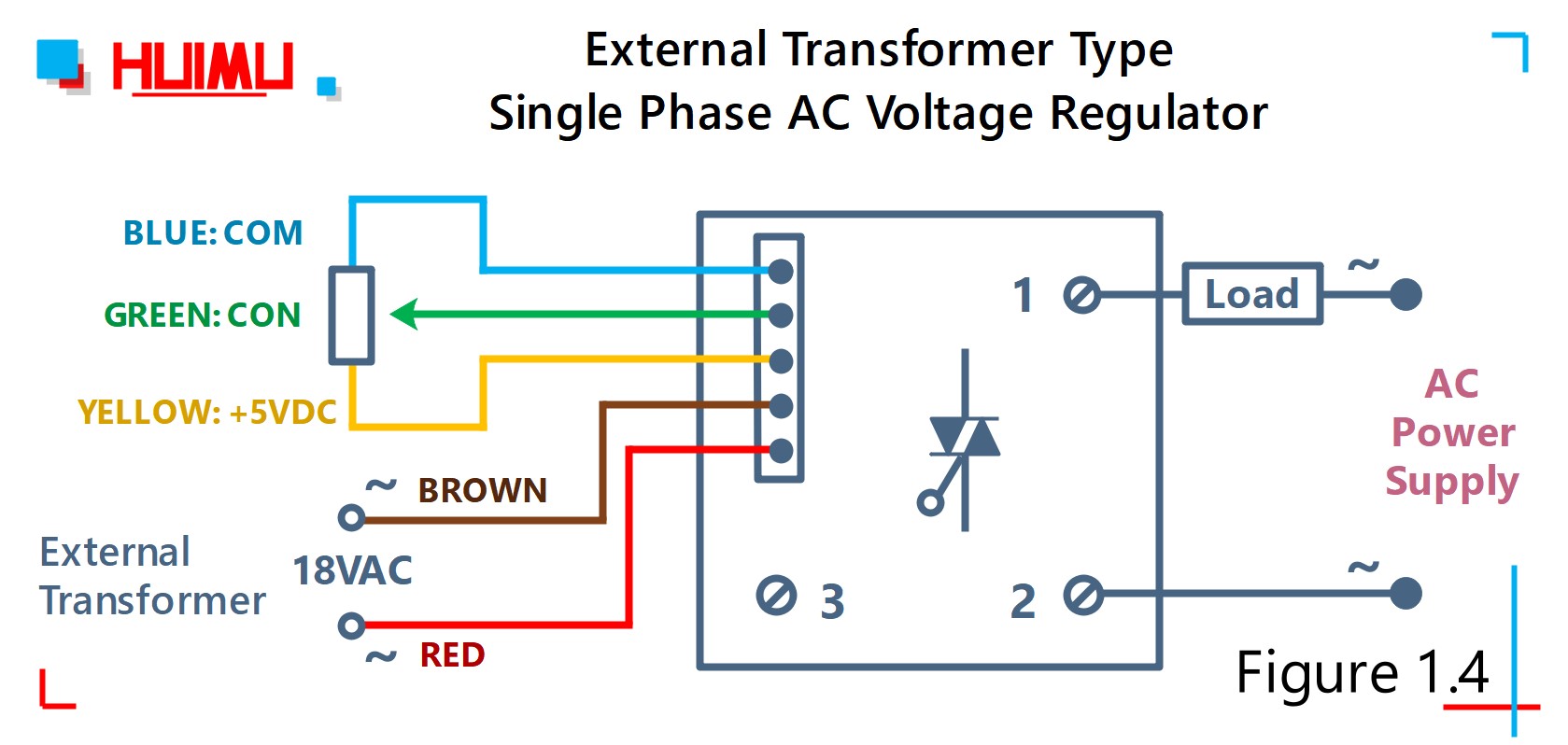

1.4 External Transformer Type

MGR-EUV25A05E

This kind of external transformer type single phase AC voltage regulator uses a standard housing (rectangle shape). 1 and 2 ports are output terminals that connect single-phase AC power supply and load; brown and red cables are connected to the 18VAC external transformer. The control signal can be divided into automatic control signal (E type: 0~5VDC, F type: 0~10VDC, H type: 1~5VDC, G type: 4~20mA) and manual control signal (potentiometer). E, F, H types have the manual control function, while G type not. The conduction angle of the thyristor can be changed by adjusting the input control signal, to adjust the output voltage to achieve the purpose of regulating and controlling the load voltage.

 Note: Before installation and use, please confirm whether the specifications (such as input current, input voltage, output current, output voltage and etc.) of the voltage regulator meet the requirements of the application.

How to wire MGR mager MGR-EUV25A05E external transformer type single phase AC voltage regulator? More detail via www.@huimultd.com

§2. How to wire Three Phase AC Voltage Regulator

2.1 Simple Type

MGR-SCR3-120LA

This kind of simple type three phase AC voltage regulator uses a simple package (or easy assembling), with basic voltage regulation function, and it is cheaper than the normal type. A1, B1, C1 ports are connected to the three-phase AC power supply; A2, B2, C2 ports are connected to the load. CON an COM are connected to the control signal device. The control signal can be divided into E type: 0~5VDC, F type: 0~10VDC, and G type: 4~20mA. +5VDC is the internal power supply, which is generated by the regulator itself. The conduction angle of the thyristor can be changed by adjusting the input control signal, to adjust the output voltage to achieve the purpose of regulating and controlling the load voltage.

 Note: Before installation and use, please confirm whether the specifications (such as input current, input voltage, output current, output voltage and etc.) of the voltage regulator meet the requirements of the application.

How to wire MGR mager MGR-SCR3-120LA simple type three phase AC voltage regulator? More detail via www.@huimultd.com

2.2 Normal Type

MGR-SCR-100LA-H , MGR-SCR-300LA-H

This kind of normal type three phase AC voltage regulator uses a normal package (or advanced assembling), with adaptability of demanding work environments, and it has more functions than the simple type. R, S, T ports are connected to the three-phase AC power supply; U, V, W ports are connected to the load. CON an COM are connected to the control signal device. The control signal can be divided into E type: 0~5VDC, F type: 0~10VDC, and G type: 4~20mA. +5VDC is the internal power supply, which is generated by the regulator itself. The conduction angle of the thyristor can be changed by adjusting the input control signal, to adjust the output voltage to achieve the purpose of regulating and controlling the load voltage.

 And following is the additional function:
1) Adjustable output voltage range: the maximum output value and minimum output value of the output voltage can be adjusted by BIAS.
2) Multi-function LED status indicator light: PL will be lighted when the voltage regulator is connected to the three phase 380VAC power supply and powered on; IN will lighted when the temperature control signal is transmitted from the temperature controller; OUT will be lighted when the voltage regulator is connected to the load and works steadily; FB will be lighted when the fast fuse is blown.

 Note: Before installation and use, please confirm whether the specifications (such as input current, input voltage, output current, output voltage and etc.) of the voltage regulator meet the requirements of the application.

How to wire MGR mager MGR-SCR-100LA-H, MGR-SCR-300LA-H normal type three phase AC voltage regulator? More detail via www.@huimultd.com

§3. How to wire AC Voltage Control Module

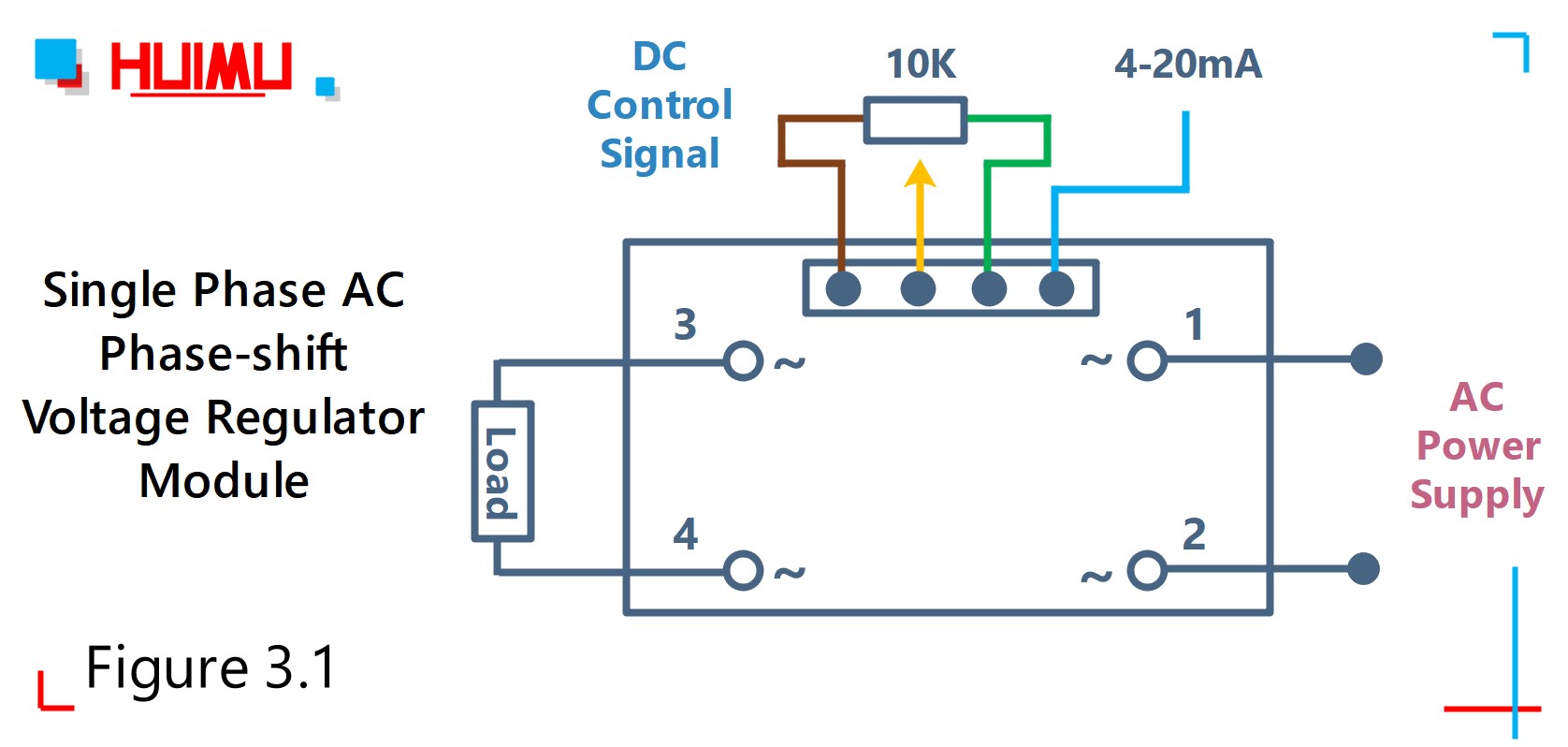

3.1 Single Phase Ac Phase-Shift Voltage Regulator Module

MGR-DTY-F-22-70A-EG

This kind of single phase AC phase-shift voltage regulator module has the closed-loop (negative feedback) voltage regulation system, which can effectively stabilize the load voltage. 1 and 2 ports are connected to the single-phase AC power supply; 3 and 4 ports are connected to the load. The terminal strip is connected to the control signal device. The control signal can be divided into automatic control signal (E type: 0~5VDC, G type: 4~20mA) and manual control signal (potentiometer). The conduction angle of the thyristor can be changed by adjusting the input control signal, to adjust the output voltage to achieve the purpose of regulating and controlling the load voltage.

 Note: Before installation and use, please confirm whether the specifications (such as input current, input voltage, output current, output voltage and etc.) of the voltage regulator meet the requirements of the application.

How to wire MGR mager MGR-DTY-F-22-70A-EG single phase AC phase-shift voltage regulator? More detail via www.@huimultd.com

3.2 Full Isolation Single Phase Ac Voltage Regulator Module

MGR-DTY2240EG

This kind of full isolation single phase AC voltage regulator module has LED status indicator light. 3 and 4 ports are connected to the single-phase AC power supply; 1 and 2 ports are connected to the load. The input terminals are connected to the control signal device. The control signal can be divided into automatic control signal (E type: 0~5VDC, F type: 0~10VDC, H type: 1~5VDC, G type: 4~20mA) and manual control signal (potentiometer). E, F, H types have the manual control function, while G type not. The conduction angle of the thyristor can be changed by adjusting the input control signal, to adjust the output voltage to achieve the purpose of regulating and controlling the load voltage.

 Note: Before installation and use, please confirm whether the specifications (such as input current, input voltage, output current, output voltage and etc.) of the voltage regulator meet the requirements of the application.

How to wire MGR mager MGR-DTY2240EG full isolation single phase AC voltage regulator? 220VAC type AC voltage regulator module circuit diagram, rated working voltage is 220VAC. More detail via www.@huimultd.com

Figure 3.2A: 220VAC type AC voltage regulator module circuit diagram, rated working voltage is 220VAC

How to wire MGR mager MGR-DTY2240EG full isolation single phase AC voltage regulator? 380VAC type AC voltage regulator module circuit diagram, rated working voltage is 380VAC. More detail via www.@huimultd.com

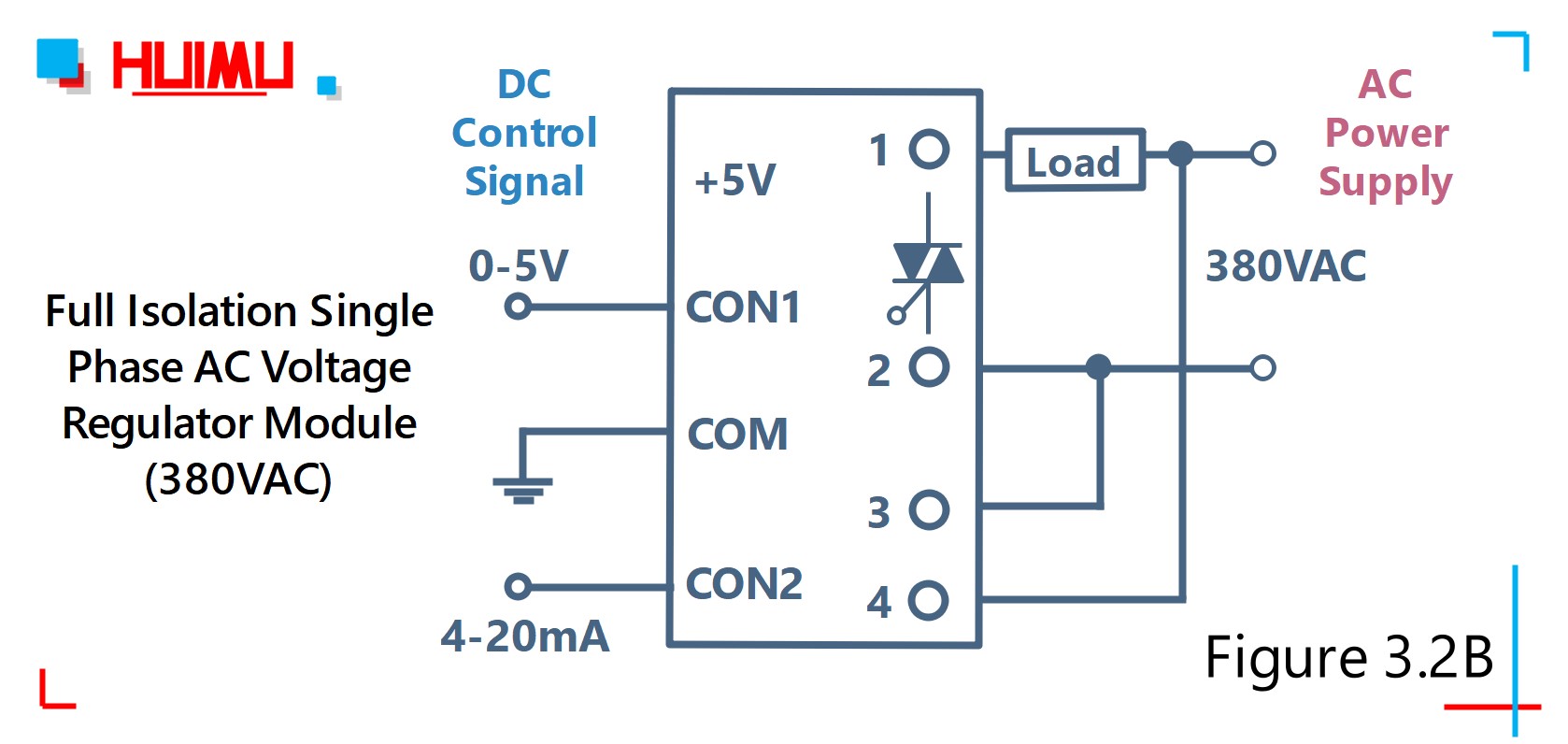

Figure 3.2B: 380VAC type AC voltage regulator module circuit diagram, rated working voltage is 380VAC

How to wire MGR mager MGR-DTY2240EG full isolation single phase AC voltage regulator? Half-wave type AC voltage regulator module circuit diagram, rated working voltage is 220VAC or 380VAC, output waveform is half wave. More detail via www.@huimultd.com

Figure 3.2C: Half-wave type AC voltage regulator module circuit diagram, rated working voltage is 220VAC or 380VAC, output waveform is half wave

How to wire MGR mager MGR-DTY2240EG full isolation single phase AC voltage regulator? Manual type AC voltage regulator module circuit diagram, E, F, H types can be controlled by manual, and G type cannot. More detail via www.@huimultd.com

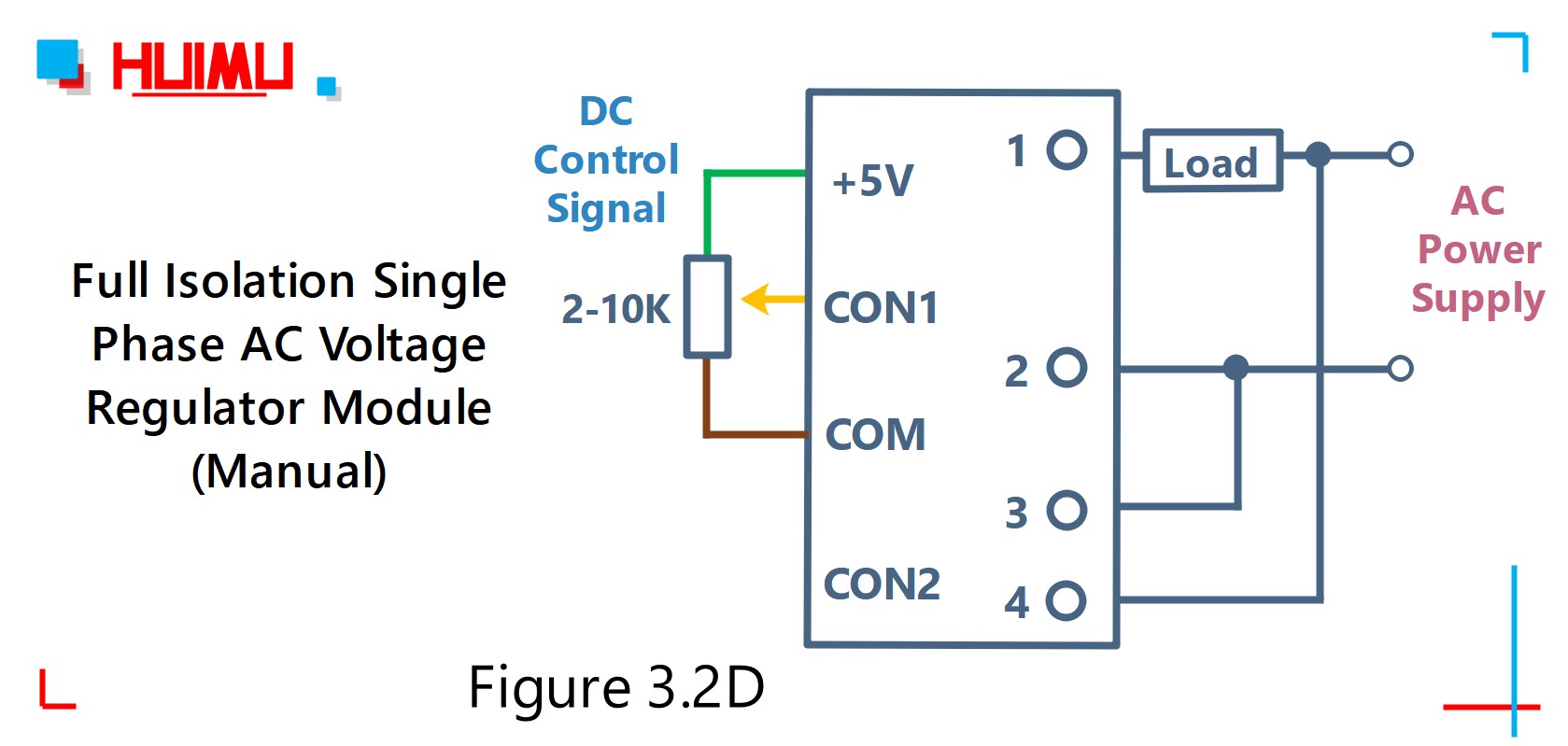

Figure 3.2D: Manual type AC voltage regulator module circuit diagram, E, F, H types can be controlled by manual, and G type cannot

3.3 Full Isolation Three Phase Ac Voltage Regulator Module

MGR-STY380D40E

This kind of full isolation three phase AC voltage regulator module uses TB-3 as the power source of the 18VAC synchronous voltage. The N, R, S, T ports of the TB-3 synchronous transformer are connected to the three-phase AC power supply; r1, r2, s1, s2, t1, t2 ports of TB-3 are connected to the r1, r2, s1, s2, t1, t2 ports of the regulator module. The terminal strip is connected to the control signal device. The control signal can be divided into automatic control signal (E type: 0~5VDC, F type: 0~10VDC, H type: 1~5VDC, G type: 4~20mA) and manual control signal (potentiometer). E, F, H types have the manual control function, while G type not. The conduction angle of the thyristor can be changed by adjusting the input control signal, to adjust the output voltage to achieve the purpose of regulating and controlling the load voltage.

 Note: Before installation and use, please confirm whether the specifications (such as input current, input voltage, output current, output voltage and etc.) of the voltage regulator meet the requirements of the application.

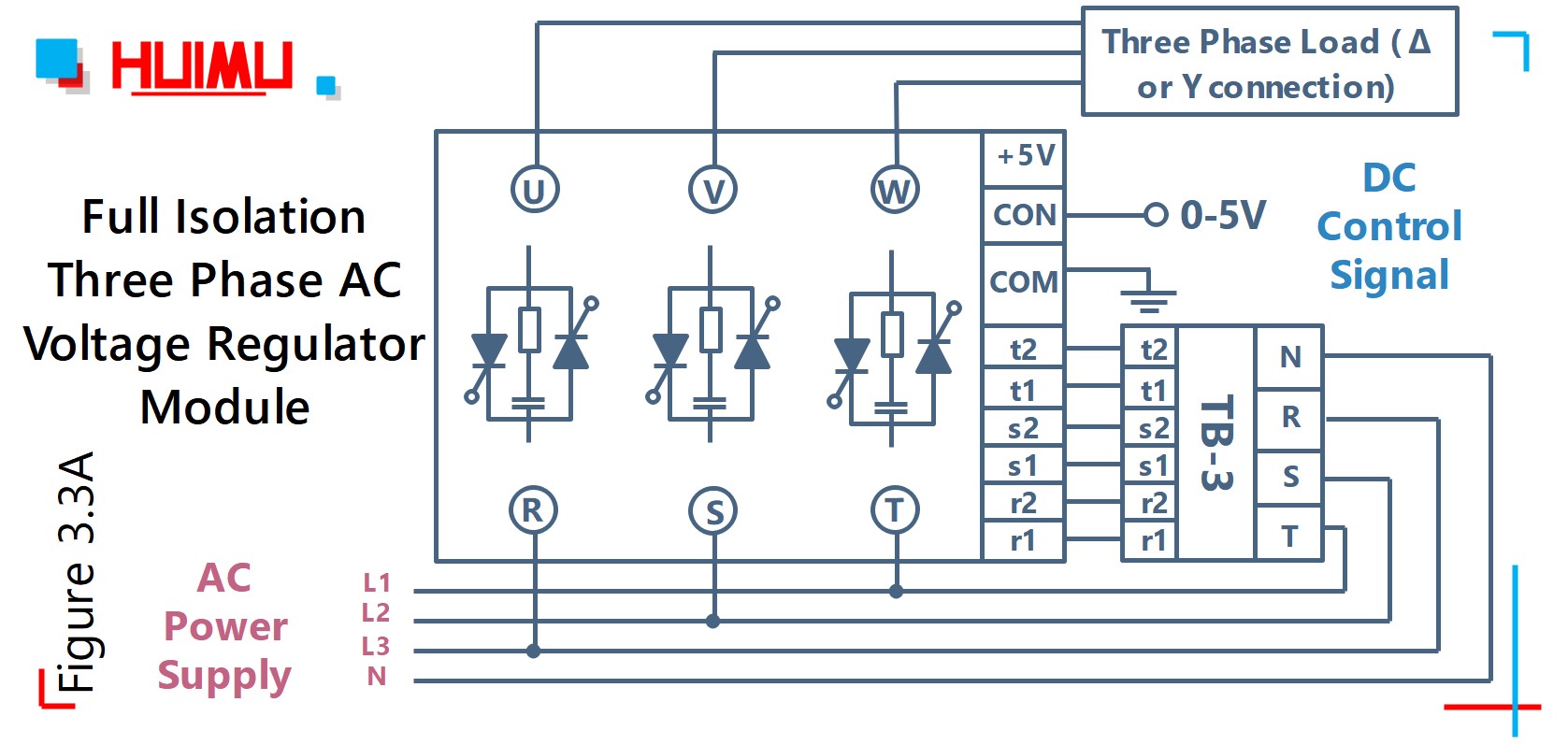

How to wire MGR mager MGR-STY380D40E (automatic control signal) full isolation three phase AC voltage regulator module? More detail via www.@huimultd.com

Figure 3.3A: Automatic control signal

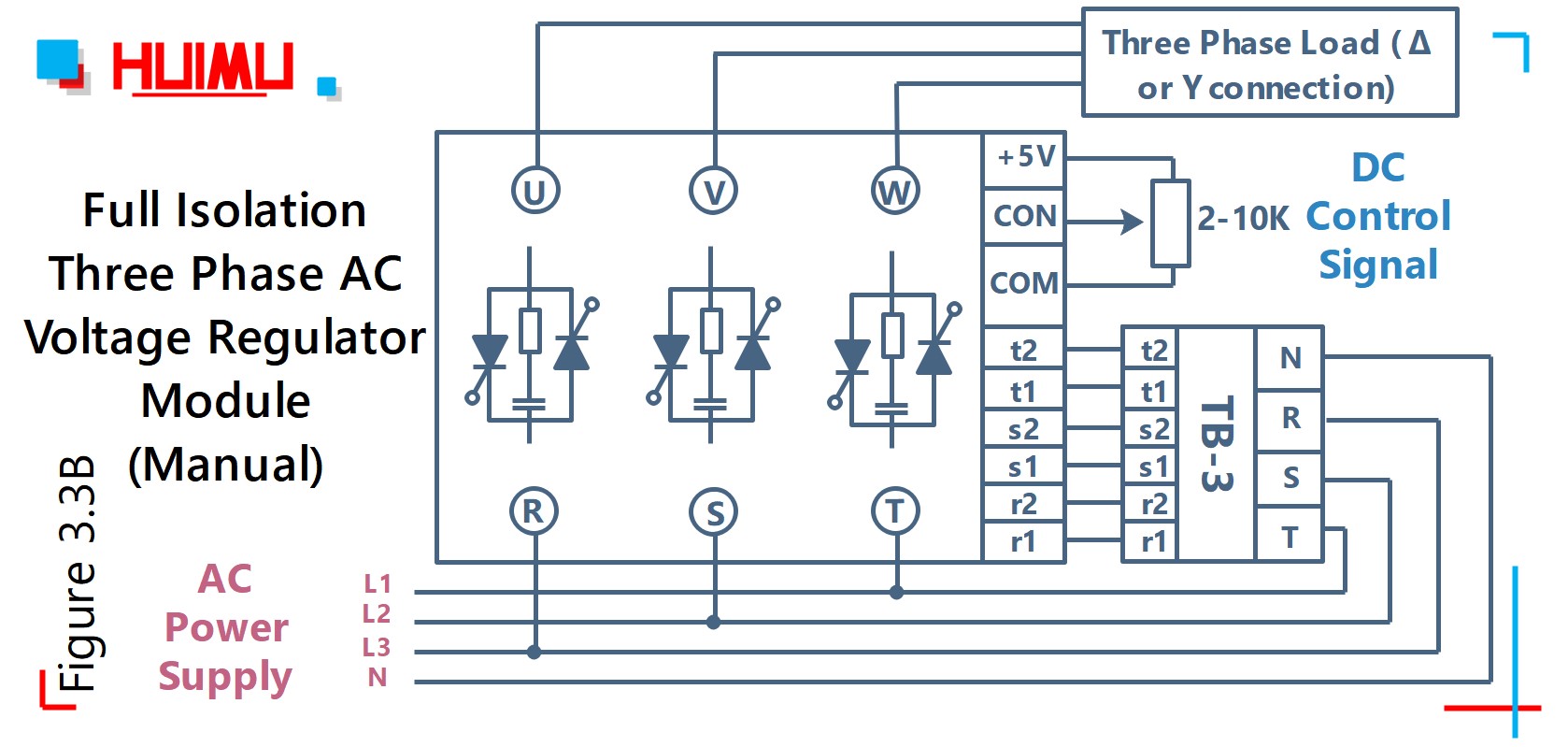

How to wire MGR mager MGR-STY380D40E (manual control signal) full isolation three phase AC voltage regulator module? Manual control signal, E, F, H types can be controlled by manual, and G type cannot. More detail via www.@huimultd.com

Figure 3.3B: Manual control signal, E, F, H types can be controlled by manual, and G type cannot
